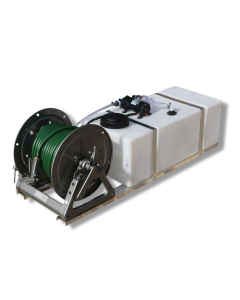

Solutions 25 Gallon Spray Rig
Sprayer
As low as $956.99

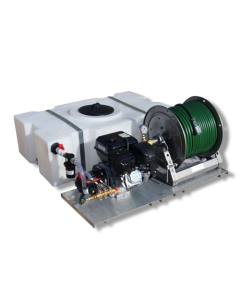

Piston Pump Skid Sprayer- Low Profile 50gal
Sprayer
As low as $2,160.65

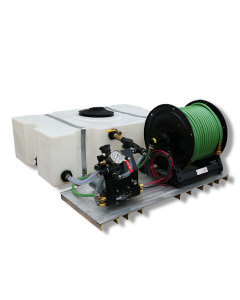

Electric Pump Skid Sprayer- Low Profile 50gal
Sprayer
As low as $2,200.00

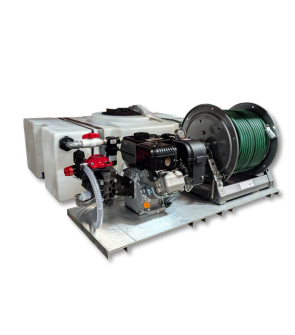

Diaphragm Pump Skid Sprayer- Low Profile 50gal
Sprayer
As low as $2,339.63
Keith's Pro Tips

"Don't forget to relieve the pressure going to your spray hose before starting your spray rig. Starting the rig without relieving the pressure will make starting the rig harder at best and could damage your pump at worst."

The Best Pesticide Spray Rigs

If you are a professional pest control operators and need to treat large areas in a short amount of time, pesticide spray rigs are a solid solution. A professional skid sprayer is a highly effective tool for a range of treatment and application needs, from lawn and ornamental spraying to structural and termite pre-treatments.

Solutions Pest & Lawn manufactures and stocks rigs to meet any application demand. Our pest control spray rigs are built with the highest quality components in the industry to reduce frequent repair cost and downtime.

Solutions Pest & Lawn offers two styles of spray rigs: stock and custom. Every Solutions spray rig is built on a lightweight but durable, rust-resistant aluminum frame. All seams on the frame are welded, never bolted. We offer polyethylene tanks in a variety of sizes and configurations to fit your needs.

Sizes range from 25 gallons to 1,000 gallons. Three hundred feet of high-pressure chemical spray hose, rated at 600 psi working pressure and 1,800 psi burst pressure, is mounted on a high-quality Hannay Reels. Electric, diaphragm, and piston pump rigs are available and are powered by 6.5HP 212cc OHV Horizontal Engine for high performance.

Recommendation

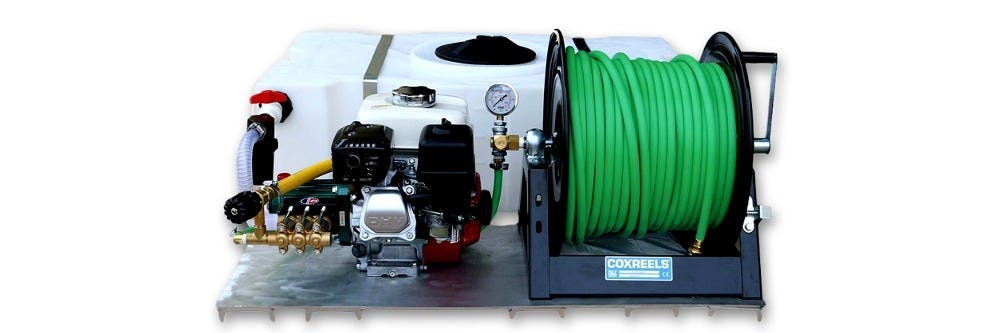

For an all-around, high performing spray rig, we recommend the Solutions Piston Rig. Our piston rig features a Maruyama MSD41 piston pump that is rated to output up to 8 gallons per minute at 570 psi. With its high volume and high pressure output, this rig is perfect for both small residential jobs and larger commercial jobs.

It will easily treat trees, turf, ornamentals, and structures both big and small. The piston rig is driven by a 6.5HP 212cc OHV Horizontal Engine and comes with 300 feet of 3/8 inch high pressure hose and a 50 gallon low profile tank, all situated on a welded aluminum frame. Spray gun sold separately.

User Guide

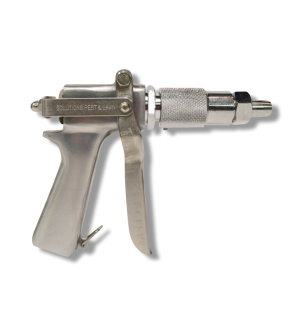

Spraying Gun

Step 1: Relieving Pressure

Before starting your spray rig, it is important to first relieve the pressure going to the spray hose. Relief valves may vary depending on your pump or rig type. But no matter your rig type, you will want to relieve the pressure so that instead of going to the spray hose, it instead goes back to the tank for agitation and allows zero restriction when starting the engine.

Step 2: Starting the Rig

For non-electric rigs, first make sure that the pump, engine and gearbox (if present) contains the recommended oil level. To start the 6.5HP 212cc OHV Horizontal Engine, turn the choke to start position, open the fuel valve, and then slide the throttle to 1/3 away from slow position.

Grip the Starter Handle of the engine loosely and pull it slowly several times to allow the gasoline to flow into the Engines carburetor. Then pull the Starter Handle gently until resistance is felt. Allow Cable to retract fully and then pull it quickly. Repeat until the engine starts. Do not let the Starter Handle snap back against the engine, hold it as it recoils so it doesn't hit the engine.

Allow the engine to run for several seconds. Then, if the choke lever is in the start position, move the choke lever very slowly so its RUN position. Allow the engine to run at no load for five minutes after each start-up so that the engine can stabilize.

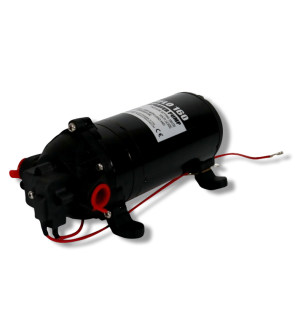

For electric rigs, check that the pump is securely attached to a 12 volt battery (not included) and simply press the ON switch.

Step 3: Set the Pressure

After the rig is started, set the pressure using the valve to the required amount of pressure to send to your hose for spraying.

Step 4: After Spraying

At the end of a job, it is important that you again relieve the pressure going to the hose reel. Simply repeat step 1, getting the pressure to read as close to zero as you can on the pressure gauge. Turn off the rig by moving the throttle lever back to the MIN position, turning the engine switch to the OFF position, and then moving the fuel lever to the OFF position.

Inspection and Maintenance

Inspecting and maintaining your spray rig is important to improve the overall efficiency and life expectancy of the rig. If you're using a non-electric rig, be sure to check the oil of your pump, engine, and gearbox (if present). Be sure to refer to the user manuals for the correct oil to use.

Don't forget to check and clean your inline strainer as debris build up can cause blockage. Clean your spray tank regularly to minimize algae growth. And be sure to visually inspect each component of the rig for any noticeable damage or wear and tear.

Parts

The stock piston rig is outfitted with several key parts for superior performance and ease of use.

6.5HP 212cc OHV Horizontal Engine

6.5HP 212cc OHV Horizontal Engine

The 6.5HP 212cc OHV Horizontal Engine is known for its proven reliability. This 212 cc engine features a recoil starter with a convenient ON/OFF switch, variable throttle and fuel control, and a low oil sensor. It is also offers quality with durability.

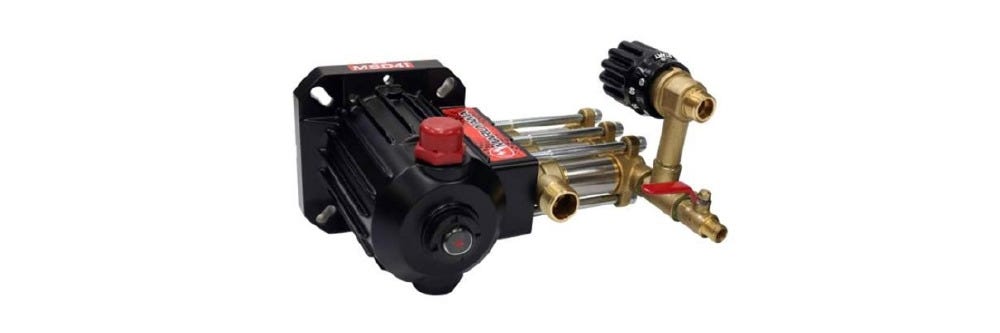

Maruyama MSD41 Piston Pump

Maruyama MSD41 Piston Pump

The MSD41 piston pump is a versatile and efficient pump, capable of outputting up to 8 gallons per minute at 570 psi. This pump features a uni-flow design that allows fluid to enter and exit the pump without changing the flow's direction for superior pump life and performance.

50 Gallon Low Profile Tank

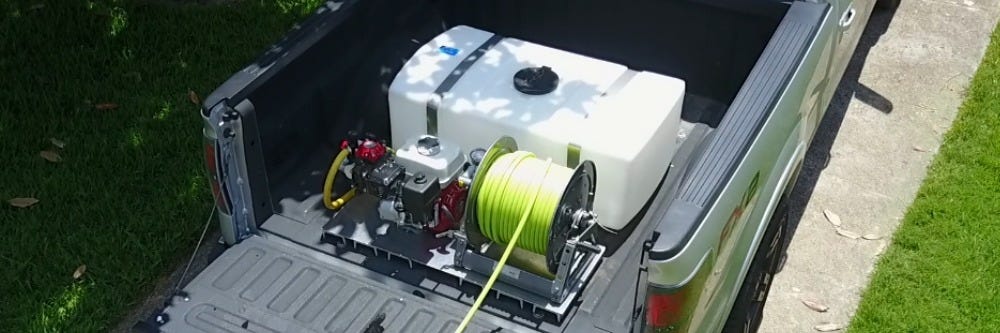

The tank is made of a high quality polyethylene that is proven to withstand even the harshest of chemicals. The low profile design allows stock rigs to fit under most truckbed covers. A variety of configurations, designs, and sizes are available for custom rigs.

Hannay Reels

Hannay Reels professional hose reels are made of a heavy duty A frame steel construction with a powdercoat finish. Each reel is made with viton material and permanently lubricated bearings for extended life expectancy and performance, and features a high quality brass swivel inlet. Stock rigs come equipped with a manual crank reel, but electric reels are available. Both manual and electric reels will hold 300 feet of either 3/8 inch or 1/2 inch I.D. PVC hose.

High Pressure Chemical Spray Hose

Every rig comes with 300 feet of either 3/8 inch or 1/2 inch I.D. hose. This hose is capable of withstanding 600 pounds of working pressure and 1800 pounds of burst pressure. Hoses are made with premium quality PVC compounds, ideally-suited for lawn and ornamental spraying. Each hose features a pin-pricked cover that vents vapor and helps prevent ballooning. The hose is lightweight and easy to coil after use.

Quick Disconnect

The quick disconnect is designed and included on spray rigs to make spraying jobs a little easier. It allows for operators to easily switch between different spray guns and applicators. It is made of a heavy duty brass and swivels for easy movement during spraying.

Inline Strainer

The inline strainer is included in every rig, installed between the spray tank and the pump. It is designed to filter out and catch any debris that may be in your tank or in the hose.

Skid Sprayer Frame

Every spray rig is built using a lightweight but durable aluminum frame. Every seam is welded, never bolted. It is rust and chip-free. Frames can be made for any specification to allow a unique footprint.

Pressure Gauge

Every Solutions spray rigs comes equipped with a high quality pressure gauge. This is installed on the down side of the pump and will help operators monitor the pressure going to the spray hose. This pressure gauge will measure up to 300 psi.

Key Takeaways

  • A spray rig is an incredibly useful tool for professionals and serious DIYers who need to treat large areas in little time. Every rig made by Solutions uses only the highest quality parts and are built to last.
