Diaphragm Pump Skid Sprayer- Low Profile 50gal

The Diaphragm Pump Low Profile Skid Sprayer is a professional spray rig featuring a Hypro DP-252 diaphragm pump. It fits in the back of any truck to spray insecticides, herbicides or fertilizers to outdoor areas. The parts come with a 1 year manufacturer's warranty. (Spray gun & male plug are sold separately). Rig measures 44" long x 40"(+6" handle) wide x 21" tall.
Only %1 left
SKU
50 Gallon Skid Sprayer- Diaphragm Pump product page
Min : 2339.63 - Max : 2339.63
+ -

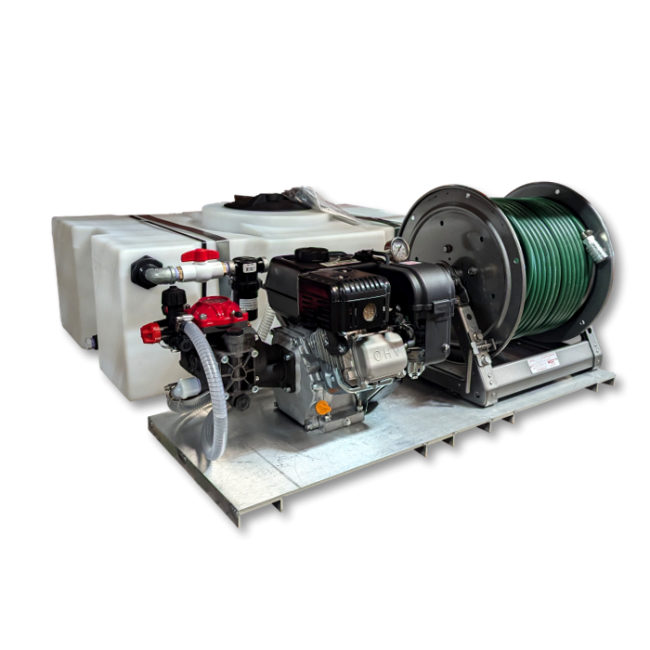

Created in-house by Solutions Pest & Lawn, the Diaphragm Pump Low Profile Skid Sprayer is a professional pesticide spraying rig that comes assembled with a Hypro DP-252 pump, 6.5HP 212cc OHV horizontal engine, manual Hannay reel, 300 feet of 3/8 inch hose, and a 50-gallon low profile tank. All components are bolted to an aluminum frame that will never rust and is welded at every seam.

The Hypro diaphragm pump provides up to 290 psi and is great for row crop or treetop spraying applications. The 6.5HP 212cc OHV horizontal engine engine has lower noise levels, lower vibration, and lower emissions without sacrificing power. The manual Hannay reel is built with a heavy-gauge, powder-coated steel frame and will hold up to 300 feet of 3/8 inch hose.

The low profile tank feature on the Diaphragm Pump Low Profile Skid Sprayer prevents the rig from blocking the rear view of the vehicle in which it is mounted. Main component parts are covered by their manufacturer with a 1-year parts warranty and a 100% guarantee (excluding plumbing).

Tools Needed

The spray gun is sold separately and will be needed to properly operate the Solutions 50 Gallon Diaphragm Pump Skid Sprayer. (Gun Sold Separately)

How to Use

Spraying Rig

  • Step 1: Start by making sure the inline filter valve is open and the screen is clean and that you have adequate oil in both the pump and engine.
  • Step 2: Before starting the engine, you will then need to set the pressure gauge on the diaphragm regulator to agitate. Turn the red pressure release knob so the letter A in the 12 o'clock position.
  • Step 3: Go to the engine and move the fuel lever to the ON position. Choke the engine by moving the choke lever to the CLOSED position. Move the engine's throttle lever to about 1/3 of the way toward the MAX setting. Flip the red engine switch to the ON position, and then pull the starter rope. If the choke lever was set to the CLOSED position, gradually move the lever to the OPEN position as the engine warms up. If restarting a warm engine, leave the lever in the OPEN position.
  • Step 4: Once the motor is running, it will idle. Let it run for 15 seconds and then put it into normal run. If there is a product in the tank, it should be circulating. At this point, go to the pump's pressure regulator to turn on the pressure so you can begin to spray the product. Do this by slowly turning the red pressure knob toward the letter C, keeping an eye on your pressure gauge, until you've reached the desired pressure output.
  • Step 5: When you are finished with the application, go to the pump's pressure regulator and put it back to the bypass (where it says A for agitation). This will take the pressure off the hose and spray gun. Then you can simply turn off the engine by moving the engine's throttle lever back to the MIN position, turning the engine switch to the OFF position, and then moving the fuel lever to the OFF position.

Where to Use

The Diaphragm Pump Low Profile Skid Sprayer can be used to spray lawns, turfs, golf courses, orchards, gardens, crops, trees, outside building structures and homes.

When to Use

The Diaphragm Pump Low Profile Skid Sprayer can be used any time when applying insecticide, fertilizer or herbicide to areas outside. Due to the high-pressure output for this rig, this is ideal for spraying target areas that are high up or difficult to reach.

Safety Information

The Diaphragm Pump Low Profile Skid Sprayer is safe to use around humans and pets when used properly and when following the safety instructions in your chosen pesticide's label. Make sure to set the correct pressure at the pump. For every 100 feet of hose, 10 pounds of pressure is lost.

Special Considerations

The Hypro DP-252 pump used for the Diaphragm Pump Skid Sprayer is a direct drive and attaches directly to the engine without the use of couplers.

Please note: The color of the hose may vary from green, lime green, red or yellow, depending on which one we have in stock.

*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure the packages are covered by their respected manufacturer's warranties.

AvailabilityOnline
Restricted UseNo
BrandSOLUTIONS
Keith's Pro Tips"Every time you are about to use your rig, it's important to check the charge pressure on the pulsation dampener within the rig's diaphragm pump. Think of it like a small balloon that requires some air to operate properly. The pressure should be about 20% of the max pressure that you will be using. You can easily check the charge pressure by using a standard air gauge."
Product DrawbacksThe diaphragm within the pump needs to be replaced every 12 to 18 months depending on use.
Target PestsThe Solutions 50 Gallon Diaphragm Pump Skid Sprayer can be used to target insects and weeds or it can be used to apply fertilizers.
Application EquipmentGloves, Respirator Mask
Application MethodsBasal Treatment, Broadcast Spray, Drench Treatment
Active IngredientN/A
Product TypeEquipment
FormulationSprayer
Application RateDiaphragm Pump Skid Sprayer- Low Profile 50gal is ready to use with no mixing required.
Shelf LifeDiaphragm Pump Skid Sprayer- Low Profile 50gal will last when parts are maintained and stored away from excessive moisture, dust, and pest activity.
YieldWhen using a 300 feet hose and the labels for pesticides call for a 40 psi head pressure, the pressure gauge at the pump should be 70-80 to ensure proper application. At this rate 1 to 2 gallons per minute out of this 50 Gallon Skid Sprayer.
Use SitesOutdoors
Time to KillDiaphragm Pump Skid Sprayer- Low Profile 50gal time to eliminate will depend on product material being used, but it will quickly release it within several minutes.
Comparable Products50 Gallon Low Profile Piston Pump Skid Sprayer
5/5
Based on 4 reviews
  • 100%(4)
  • 0%(0)
  • 0%(0)
  • 0%(0)
  • 0%(0)
100%
5/11/17
Louise P
Verified Buyer
Great Product
No issues, will have this sprayer for life
100%
5/11/17
Harry L
Verified Buyer
50 GALLON SKID SPRAYER
Best sprayer I have ordered!
100%
5/10/17
Matt H
Verified Buyer
Highly Recommended Get!
This sprayer is amazing and extremely well built and high quality.
I can see this sprayer lasting my a long long time and having many hard days of use.
I would most definitely recommend this sprayer for both commercial use to anybody.
100%
5/10/17
Jackie
Verified Buyer
Great Product
I was very happy with the out come of my sprayer! haven't had one problem with it.
More Information
Restricted Use No
Availability Online
Keith's Pro Tip "Every time you are about to use your rig, it's important to check the charge pressure on the pulsation dampener within the rig's diaphragm pump. Think of it like a small balloon that requires some air to operate properly. The pressure should be about 20% of the max pressure that you will be using. You can easily check the charge pressure by using a standard air gauge."
Time to Kill Diaphragm Pump Skid Sprayer- Low Profile 50gal time to eliminate will depend on product material being used, but it will quickly release it within several minutes.
Chemical Type Equipment
Formulation Sprayer
Application Methods Basal Treatment, Broadcast Spray, Drench Treatment
Product Drawbacks The diaphragm within the pump needs to be replaced every 12 to 18 months depending on use.
Active Ingredient N/A
Application Equipment Gloves, Respirator Mask
Mix Rate Diaphragm Pump Skid Sprayer- Low Profile 50gal is ready to use with no mixing required.
Use Sites Outdoors
Yield When using a 300 feet hose and the labels for pesticides call for a 40 psi head pressure, the pressure gauge at the pump should be 70-80 to ensure proper application. At this rate 1 to 2 gallons per minute out of this 50 Gallon Skid Sprayer.
Shelf Life Diaphragm Pump Skid Sprayer- Low Profile 50gal will last when parts are maintained and stored away from excessive moisture, dust, and pest activity.
Comparable Products 50 Gallon Low Profile Piston Pump Skid Sprayer
Children or pets? No
Property Characteristics None
Questions and Answers
Page
  1. Q:Does this spray rig have a valve to isolate the tank if the hose leaks?
    3/4/23
    A:yes the Diaphragm Pump Skid Sprayer- Low Profile 50gal does have a valve to isolate the tank if the hose leaks.

    Amanda Chavez

    3/7/23
    Certified Buyer
  2. Q:What product is best for spraying roofs?
    2/16/23
    A:This will depend on the pest you are trying to control, but if you speak directly with our customer service team at 800-479-6583 they would be glad to help you.

    Amanda Chavez

    2/16/23
    Certified Buyer
  3. Q:I’ve got 5 acres (300’ by 750’) which is full of poison oak in the area of so Oregon. The house is just about in the center of the property with a circular drive. The intent would be to walk the 300’ hose around the site. The property is somewhat hilly, so my concern would be loss of head pressure at 300’ of hose and points up to 20’ of head. Will this unit perform under those conditions?
    6/25/22
    A:The pressure will remain the same whether the hose is completely pulled out or reeled up. Nothing should change. It's spraying through 300' either way.

    Amanda Chavez

    6/27/22
    Certified Buyer
  4. Q:What would be the best rig for general pest control? Plus termite control and treatment.
    3/25/22
    A:ShurFlo rig is the best for just general pest control, but if you are looking to treat termites than this diaphragm rig should be fine. We suggest using Taurus SC Fipronil Termiticide for spray applications since this can treat termites and other insects. https://www.solutionsstores.com/taurus-sc-termiticide

    Amanda Chavez

    3/25/22
    Certified Buyer
  5. Q:I need a spray rig that sprays very slow to keep refilling the tank so many times what would be the best spray rig to purchase the rig with the die cast blue pump the rig with the electric pump or the rig with the diaphram pump? Because I just purchased the die cast blue pump spray rig with less maintenance.
    10/17/21
  6. Q:The tank does not sit in a frame what is holding it intact with the base?
    9/27/21
    A:There is metal straps that wrap around the tank and are bolted down to keep the tank intact with the base.

    Amanda Chavez

    9/30/21
    Certified Buyer
  7. Q:how many gallons per minute can i get on this thing?
    7/9/21
  8. Q:Can I use that to spay blacktop sealer?
    9/1/20
  9. Q:Bought a diaphragm pump sprayer from you. What type of oil do I use?
    7/22/20
  10. Q:Can I get a 30 gallon tank in place of 50 gallon tank?
    6/18/20
