Metal Reinforced Suction Hose (Clear)
Metal Reinforced Suction Hose (Clear)

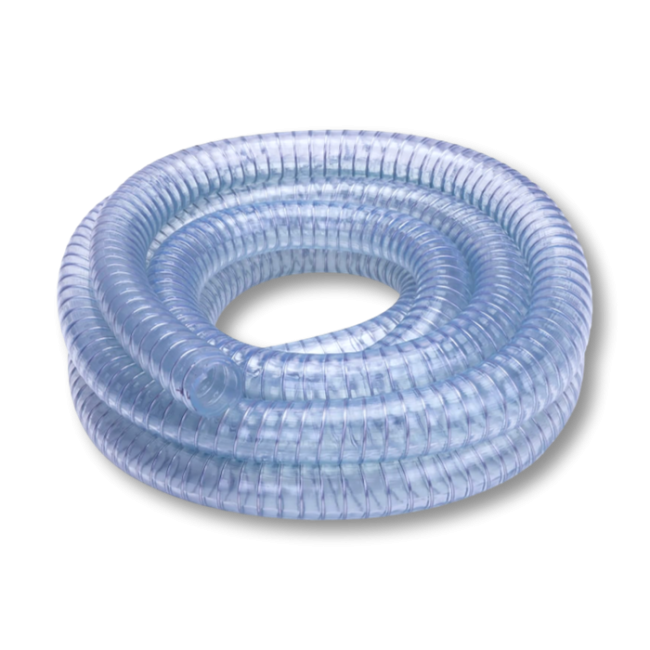

The Metal Reinforced Suction Hose is a clear PVC hose used on the suction side of a pesticide spraying rig. The hose is durable, containing a wire that will not allow the hose to collapse. Sold by the foot and is available in 10 foot increments.
The Metal Reinforced Suction Hose is manufactured by Solutions and is a durable PVC hose used on pesticide spraying rigs. This Clear Suction and Delivery Hose has a working pressure 100 PSI for the 5/8" and 1/2" ID sizes, and 75 psi for the 3/4" and 1" ID sizes. On Solutions skid sprayers, the suction hose is used to connect the tank to the pump inlet side.
Specs:
- 1/2" ID Hose: 0.75" OD, Max Working Pressure 100 psi, 0.15 lbs per foot.
- 5/8" ID Hose: 0.89" OD, Max Working pressure 100 psi, 0.19 lbs per foot.
- 3/4" ID Hose: 1.03" OD, Max Working pressure 75 psi, 0.24 lbs per foot.
- 1" ID Hose: 1.30" OD, Max Working pressure 75 psi, 0.33 lbs per foot.
The transparency of the hose allows applicators to see the flow of liquid through the pump. The hose is wire ribbed to make it more resistant to kinking and being crushed. It is lightweight yet tough and can hold up well.
Tools Needed
To install the Suction Hose on a spray rig, you would need hose clamps, tubing cutters, and a crescent wrench or pair of pliers.
How to Use
- Step 1: Cut the hose to the appropriate length so it can comfortably connect between the pump inlet and tank of the spraying rig.
- Step 2: Connect one end of the suction hose to the tank and secure it with the help of a hose clamp. Then connect the opposite end to the tank inlet side and fasten to the pump inlet. Again use the hose clamp to secure it in place.
- Step 3: Once the hose is connected, turn on the spray rig's pump motor to test the part to ensure that liquid is flowing properly through the hose with no leaks or issues.
Where to Use
The Metal Reinforced Suction Hose is used on the suction side of the pesticide spraying rig. It is to be connected between the tank and pump inlet.
When to Use
The Suction Hose is used to ensure pesticide flows properly from the tank to the pump so it can move to the hose to be sprayed. Replace the hose when it has been damaged or if there is a leak.
Safety Information
The Metal Reinforced Suction Hose is safe to use when applied according to manual directions. Always wear the proper personal protective equipment (PPE) when applying chemicals with the 3/4" ID Metal Reinforced Suction Hose.
Special Considerations
Make sure the hose is the right size for the working pressure and burst pressure of the spray rig. The hose is sold by the foot and is available in 10 foot increments.
*All sales are final. Please be sure that the hose you are selecting is the product you need. we do not accept returns on equipment.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | SOLUTIONS |
Keith's Pro Tips | "The composition of the suction hose may differ depending on the type of spraying rig model you have so make sure you assess your spraying rig to see the amount of hose you need." |
Product Drawbacks | Parts may wear and tear over time and will need replacement and/or service. |
Application Equipment | Spray Rig |
Application Methods | Installation |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Yield | N/A |
Use Sites | Outdoors |
Time to Kill | 3/4" ID Metal Reinforced Suction Hose does not eliminate pests. |
Comparable Products | High Pressure Chemical Spray Hose (PVC) |
Restricted Use | No |
---|---|
Availability | Online |
Keith's Pro Tip | "The composition of the suction hose may differ depending on the type of spraying rig model you have so make sure you assess your spraying rig to see the amount of hose you need." |
Time to Kill | 3/4" ID Metal Reinforced Suction Hose does not eliminate pests. |
Chemical Type | Equipment |
Formulation | Parts/Unit |
Application Methods | Installation |
Product Drawbacks | Parts may wear and tear over time and will need replacement and/or service. |
Application Equipment | Spray Rig |
Mix Rate | N/A |
Use Sites | Outdoors |
Yield | N/A |
Comparable Products | High Pressure Chemical Spray Hose (PVC) |
Children or pets? | No |
Property Characteristics | None |
-
Q:Is this hose safe for transferring potable water?1/12/23A:3/4" ID Metal Reinforced Suction Hose (Clear) is intended for the suction side of a pesticide spraying rig when applying pesticides.
Amanda Chavez
1/13/23Certified Buyer -
Q:Can this be used with diesel fuel?7/13/22A:This product is not intended for this usage.
Amanda Chavez
7/13/22Certified Buyer -
Q:Increments of 10 inches or 10 feet?1/9/21
-
Q:What units of measure is the length in? 10 inches, 10 feet, 10 centimeters, etc?11/5/20
-
Q:What is the minimum length that can be bought?9/6/18A:If memory serves, I was able to buy 6ft...hope this helps
Bruce Brua
9/7/18Certified Buyer
