The 3/4 90 Degree Nylon Hose Barb is a hose barb component that is a needed accessory to connect the Maruyama MSD41 Piston Pump to hoses when utilized in a professional pesticide spraying rig. This part should be ordered when you have only purchased a Maruyama MSD41 Piston Pump as it is sold seperately.

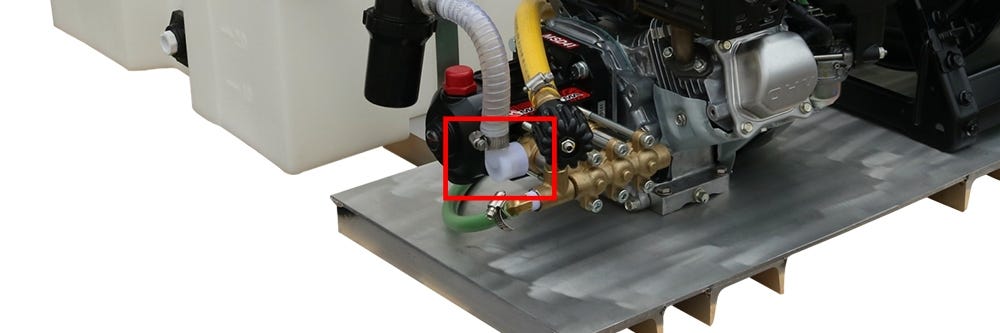

The 90 degree Nylon Hose Barb connects to the suction hose that may be attached from a pesticide tank. The durable Nylon ensures that there will be a smooth flow with no leaks.

Tools Needed

To install the 3/4 90 Degree Nylon Hose Barb, you will need a crescent wrench and the appropriate hosing to attach to a spraying rig unit.

How to Use

• Step 1: Make sure the spraying rig is powered off and the ball valve is in the closed position.
• Step 2: Following manual directions, attach the hose barb to the suction port and use a crescent wrench to tighten it until it is secure.
• Step 3: Attach the suction hose to the Nylon Hose barb and connect the other end of the hose to the chemical tank.
• Step 4: Make sure all other connections are secure and then power on the rig and open the valve to the tank to allow the liquid to flow to the pump and hoses.

Where to Use

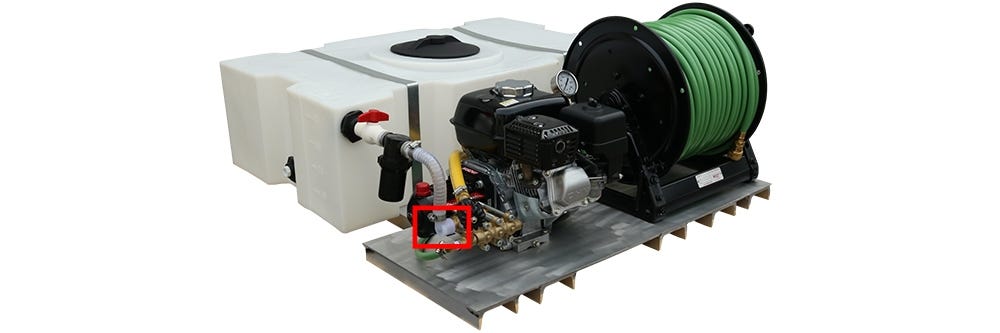

The 3/4 90 Degree Nylon Hose Barb is a connection part specifically for the Maruyama MSD41 Piston Pump. It is meant to connect to the suction port to allow the suction hose to attach to the port securely.

When to Use

Use the 3/4 90 Degree Nylon Hose Barb when you have purchased a new Maruyama MSD41 Piston Pump or when your old Nylon Hose Barb has been damaged.

Safety Information

The 3/4 90 Degree Nylon Hose Barb is safe to install when done so according to the manual directions. Always use the proper PPE when operating or performing maintenance to the piston pump (safety mask, gloves, protective eyewear).

Special Considerations

If you have purchased a new Maruyama MSD41, not only is a Nylon Hose barb needed, but also a 90 degree brass hose barb and a straight hose barb are needed and should be installed before connecting hoses.
