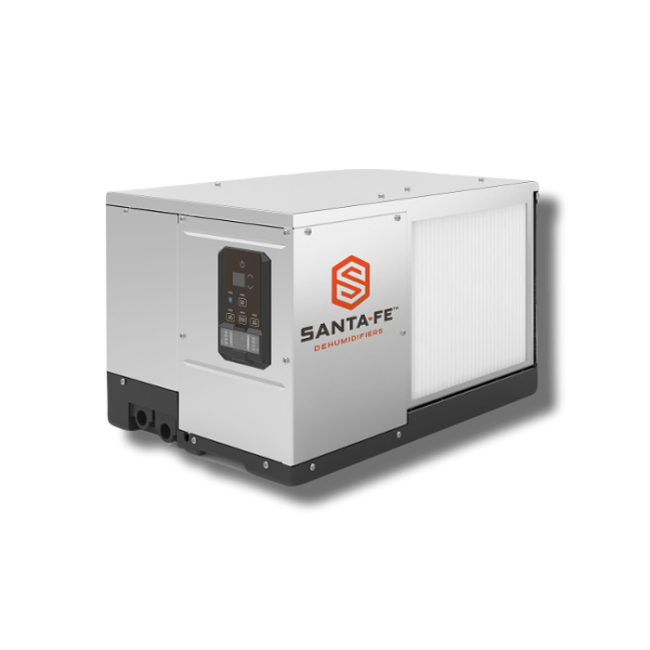

Santa Fe Oasis105 Dehumidifier
Santa Fe Oasis105 Dehumidifier
The Santa Fe Oasis105 Dehumidifier is a powerful dehumidifier that is ideal for removing moisture and dampness in basements and crawl spaces. A helpful tool in the prevention of mold, mildew and pest infestations.
The Santa Fe Oasis105 Dehumidifier, manufactured by Santa Fe, is an American made dehumidifier designed for clearing up humidity problems in large areas like basements and crawl spaces.
This powerful dual exhaust system is able to remove up to 105 pints of moisture per day (7.6 pints per kilowatt-hour) and covers up to 2,600 square feet. Once inside this product quietly remove moisture and excess humidity within homes or buildings within several minutes.
Sante Fe Oasis105 Dehumidifier is an ideal and use to use tool for clearing air filtration and decrease of moisture in desired places to deter the presence of mold, mildew, and moisture-loving insect growth. To increase its efficiency during multiple conditions this product automatically restarts after a power outage.
Tools Needed
There are no tools needed to operate the Sante Fe Oasis105 Dehumidifier as it is ready to start working right out of the box.
Items included in this box: Santa Fe Oasis105 Dehumidifier, Santa Fe Oasis105 Dehumidifier Leveling Feet, 8' Drain Hose and Drain Adapter, and MERV-13 Filter (Dimensions: 1" X 12" X 14").
How to Use
- Step 1: Plug the dehumidifier in an upright position with the intake or exhaust of the unit within 14" of a wall or other obstruction in approved indoor areas where there is access to a Ground Fault Interrupter protected outlet. Ensure there is no standing water sources before placing this product and that children do not have access to this equipment.
- Step 2: To install the levelling feet, lay down a protective pad (pillow, blanket, etc.). Carefully turn unit onto side. Install leveling feet and adjust to the desired position to ensure unit is level for proper drainage. Carefully bring unit to upright position. Wait a minimum of 10 minutes before operating.
- Step 2: Use the onboard control to set the dehumidifier to your desired humidity level, which is preset at 55% RH. To change the RH% settings press the up and down arrows to adjust target RH%.
- Step 3: Set the fan to either low, auto, or high. The unit is factory set to AUTO fan speed. This is the most efficient operating speed. Press the FAN button to toggle fan speed from AUTO to LOW, this is the slowest fan speed allowing for the quietest operating mode. Continue to press the FAN button in order to toggle to HIGH, this is a preset fan speed when the unit is ducted to insure no loss in performance for up to 0.4” of static resistance.
- Step 4: When air enters the dehumidifier, it passes through the Merv 13 air filter (89-90% ASHRAE dust spot). The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. Remove MERV-13 filter by gently pulling on the top of the filter frame. Angle the bottom of the MERV-13 filter and gently slide the filter into the filter slot. Do not force. If resistance is felt, check alignment for obstructions or debris inside the filter housing. Be sure the arrows on the filter are facing into the dehumidifier.
- Step 5: To drain, attach the included 8' drain hose and lead it to a nearby drain. If you need to drain upwards or across longer distances, consider adding an external condensate pump.
Where to Use
Use the Santa Fe Oasis105 Dehumidifier within indoor areas like basements, crawlspaces, garages, home theaters, attics, workshops, gun rooms, exercise room, new homes, whole home, or commercial buildings. Install the unit with enough space to access all sides for maintenance and service. The top panel needs to be removed in order to do repairs
The device is designed to be installed indoors in a space that is protected from rain and flooding.
When to Use
The Santa Fe Oasis105 Dehumidifier is designed to operate between 49 °F and 115 °F. If the inlet air temperature is out of this range, the unit will display an error code and not operate.
Safety Information
The Sante Fe Oasis105 Dehumidifier is safe to use around children or pets when used according to the product label instructions. Always wear the appropriate personal protective equipment (PPE) when handling or applying this product.
Before leaving the unit unattended, ensure children do not have access to the equipment. Do not allow children to play with or near the unit or in its air flow.
Special Considerations
In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must be free of water intrusion or excessive fresh (outside) air infiltration. Before installing the Santa Fe Oasis105 dehumidifier, water intrusion and air infiltration problems should be addressed.
Never operate electrical equipment near or in standing water.
*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure the packages are covered by their respected manufacturer's warranties.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | SANTA FE |
Keith's Pro Tips | "The Santa Fe Oasis105 Dehumidifier has an option to leave the fan on all the time or only when the dehumidifier is on. We recommend leaving it on for cramped spaces to get good air circulation. If you want to save on energy costs, then set it to the auto setting." |
Product Drawbacks | A dehumidifier can be very noisy. While this may not upset you if the unit is in the basement, it can be disturbing if placed elsewhere. |
Application Equipment | None Needed |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | Santa Fe Oasis105 Dehumidifier will not expire if used in an area that is not prone to flooding. |
Yield | The high-capacity Santa Fe Oasis105 Dehumidifier provides 90 pints per day of water removal in areas up to 2,200 square feet |
Use Sites | Indoors |
Time to Kill | Santa Fe Oasis105 Dehumidifier eliminates moisture within 24 hours of application. |
Comparable Products | Santa Fe Compact 2 Dehumidifier |
Restricted Use | No |
---|---|
Availability | Online |
Signal Word | WARNING |
Keith's Pro Tip | "The Santa Fe Oasis105 Dehumidifier has an option to leave the fan on all the time or only when the dehumidifier is on. We recommend leaving it on for cramped spaces to get good air circulation. If you want to save on energy costs, then set it to the auto setting." |
Time to Kill | Santa Fe Oasis105 Dehumidifier eliminates moisture within 24 hours of application. |
Chemical Type | Equipment |
Formulation | Parts/Unit |
Application Methods | Installation |
Product Drawbacks | A dehumidifier can be very noisy. While this may not upset you if the unit is in the basement, it can be disturbing if placed elsewhere. |
Active Ingredient | N/A |
Application Equipment | None Needed |
Mix Rate | N/A |
Use Sites | Indoors |
Yield | The high-capacity Santa Fe Oasis105 Dehumidifier provides 90 pints per day of water removal in areas up to 2,200 square feet |
Shelf Life | Santa Fe Oasis105 Dehumidifier will not expire if used in an area that is not prone to flooding. |
Comparable Products | Santa Fe Compact 2 Dehumidifier |
Children or pets? | No |
Property Characteristics | None |
-
Q:Is there a way to connect this humidifier to the stop switch on a condensate pump so that the Advance90 will stop running if the condensate pump stops working?10/4/21A:That Santa Fe Oasis 105 has built in float switch terminals they can be set for Normally Open or Normally Closed float switches, so if the condensate pump fails and the float switch is activated you the dehu will float terminal with trip preventing it from running.
RyanM
1/5/23Certified Buyer -
Q:Does it run off of 110 or 120 outlet?9/13/21A:The Santa Fe Advance2 plugs into a common grounded 115VAC outlet.
Amanda Chavez
9/17/21Certified Buyer -
Q:Do u need to seal off the crawl space and put plastic down ??6/20/21A:You must seal the space, otherwise it is like you are drying the ocean. The unit will run and run and run.
RyanM
1/5/23Certified Buyer -
Q:can I run machine year around ? I live in NE?4/9/20A:The Santa Fe Oasis unit automatically senses conditions in the crawlspace, so you set it and forget it. The digital control is plug and play, so set it to 55 RH and you are good to go all year long
RyanM
1/5/23Certified Buyer -
Q:Does this have a pump built in ?9/24/18A:4033038 Pump Kit, you can purchase a pump kit, but it does not come with the Santa Fe Advance 2 Standard.
Camille Landry
10/1/18Certified Buyer -
Q:On the Santa Fe Compact 2, can the drain hose be tied into a part of the PVC drain lines in the crawl space or do I have to drill a hole through the foundation?7/12/18A:Yes, I am pretty sure that would be just fine. Similar to your compressor for air conditioner drain pan.
Camille Landry
7/13/18Certified Buyer
