Sante Fe Condensate Pump Kit, manufactured by Sante Fe, is an assortment of parts to create a flexible and easy to drain dehumidier pump to lessen moisture in multiple sites such as underneath crawl spaces.

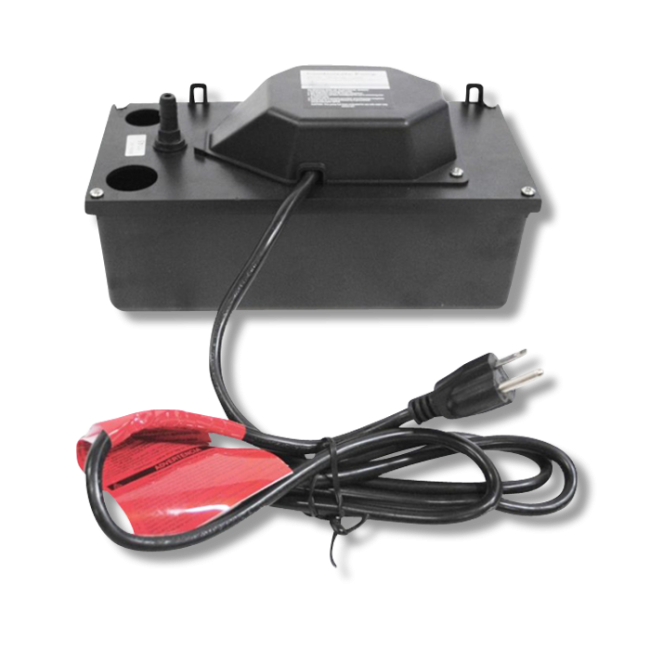

Each kit comes with a condensate pump that can move water up to 12 feet vertically, and a total of 20 feet. As a result, Sante Fe Condensate Pump Kit allows dehumidifiers to be used anywhere besides next to a floor drain.

Sante Fe Condensate Pump Kit is an ideal product to control moisture activity in hard to reach areas and help to dry these areas completely.

Tools Needed

Tools required for Sante Fe Condensate Pump Kit assembly is Phillips screw driver, level, utility knife, and other tools to help elevate dehumidifier.

Current models do not utilize bracket.

How to Use

• Step 1: Disconnect dehumidifier from electrical power and disconnect drain hose if previously installed.
• Step 2: Align Sante Fe Condensate Pump Kit condensate pump with the dehumidifier screw holes. Attach the condensate pump using the two screws as shown in the product label step 2 image. Do not over tighten the screws.
• Step 3: Route 9/16" hose from the dehumidifier to the condensate pump as shown. Be careful not to kink the hose. Trim hose to fit properly. To help with proper drainage, cut hose at 45 degree angle.
• Step 4: Insert clamp onto 3/8" drain hose and then attach hose onto the barbed outlet fitting on the condensate pump. Tighten clamp and verify that hose is secured tightly to the condensate pump by gently pulling on the hose. Route hose appropriately to drain.
• Step 5: Plug the condensate pump and dehumidifier cords into an outlet that is protected with a GFCI device on its circuit.

Where to Use

Sante Fe Condensate Pump Kit may be used in residential or commercial buildings with basements, crawlspaces, and hard to reach areas.

When to Use

Sante Fe Condensate Pump Kit is ideal to use for removing excessive buildup of moisture, when homes or buildings face humidity, or when there is a smell of mold as this is usually precedented by water.

Typically, months that have high levels of moisture or rain activity is during the spring, summer, and sometimes early fall.

Safety Information

Sante Fe Condensate Pump Kit is safe to use around children or pets when applied according to the product manufacturer guide. Always wear the appropriate personal protective equipment (PPE) such as safety glasses, masks, and insulated rubber gloves during installation.

Be cautious when disconnecting dehumidifier from electrical power.

Special Consideration

Compatible products that fit with Sante Fe Condensate Pump Kit are: Sante Fe Advance, Sante Fe Advance100, Sante Fe Classic, Sante Fe HC, Sante Fe Impact155, Ultra Aire 98H, Ultra Aire 120H, Ultra Aire XT 205H, Ultra Aire 100V, Ultra Aire 135H, Sante Fe Advance90, Sante Fe Advance120, Sante Fe Compact70, Sante Fe Impact 105, Ultra Aire 70H, Ultra Aire XT 105H, Ultra Aire XT 155H, Ultra Aire SD12, Ultra Aire 90H, and Ultra Aire 150H.
