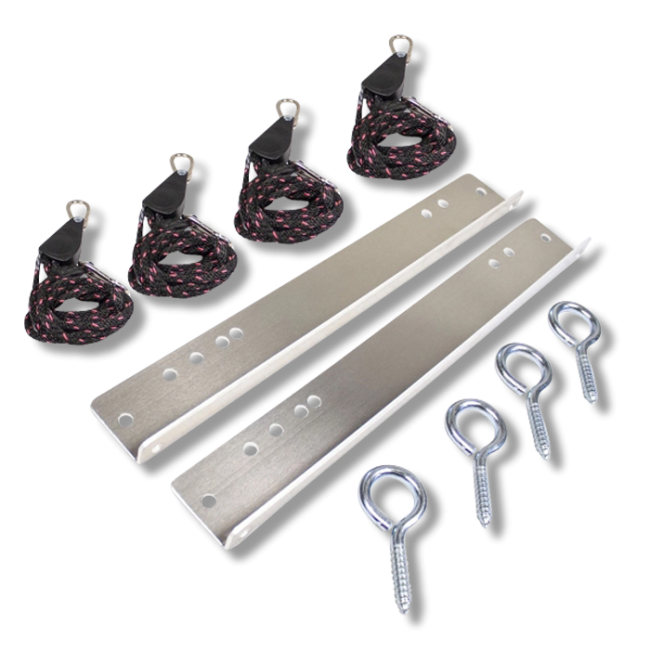

Santa Fe Small Hang Kit
Santa Fe Small Hang Kit
Sante Fe Small Hang Kit, manufactured by Sante Fe, is a kit that conveniently contains most of the tools needed for assembly and is considered an essential addition to most dehumidifiers.
As a hang kit, this product can suspend small dehumidifier models such as Sante Fe Compact2 from the ground to protect the dehumidifier from potential flooding and reduces vibration in the attic to create an ideal environment.
Sante Fe Small Hang Kit is an easy to use product that helps to free up the floor to not only enhance the protection of your dehumidifier, but to also increase proper moisture drainage and removal.
Tools Needed
To assemble Sante Fe Small Hang Kit you will need a tape measure, level, regular or Phillip's screw driver to use as leverage for Eye bolts, screws for TJI joists (only applies if you have TJI joists. An optionable tool to have is a power drill with 1/4" Drill Bit (to pre-drill Eye Bolt holes).
How to Use
- Step 1: Gently tip the unit up on its back end in order to have access to the bottom foot holes.
- Step 2: Secure the brackets in place by using the leveling feet and female threaded holes. (Leveling feet are packaged with the dehumidifier.) Line up the pre-drilled holes on the brackets with the leveling feet holes on the unit (Image A). Once lined up, screw in the leveling feet to secure the brackets to the dehumidifier (Image B). If installing the hang kit on the 70 pint unit, turn the brackets over and secure them to the bottom of the dehumidifier using the pre-drilled holes and leveling feet. (Image C). There are four leveling feet to screw in on each dehumidifier. Once in place, gently tip the unit back down on the leveling feet with the brackets in place (Image D).
- Step 3: Determine the placement of the unit and turn / screw your first eye bolt into position on the bottom of the floor or rim joist. Use a screw driver as leverage to tighten the eye bolt. Screw in until the threads are no longer visible.
- Step 4: Distance the second eye bolt 35" away from the first eye bolt on the same joist and screw into place.
- Step 5: Use the remaining two eye bolts on the joist parallel to the joist used for the first two eye bolts. Eye up the location of the remaining two eye bolts and position them straight across from the first two eye bolts used in steps 3 and 4. The placement should be close but does not need to be precise. Be sure to keep 35” of space between the two eye bolts on each joist.
- Step 6: Position the unit directly below the eye bolts. Attach the four ratchet straps to the pre-drilled holes on the hang kit brackets using the non-ratchet clip end.
- Step 7: Using the ratchet end of the ratchet strap, attach each strap to the eye bolts above the unit. If additional slack on the rope is needed, push the trigger on the ratchet end of the strap up and feed the rope through as needed.
- Step 8: Pull down on the ratchet rope, lifting the unit in place. We recommend pulling down on each individual ratchet rope 6-12 inches at a time until level. Moving the straps too quickly can cause the unit to rock and tip.
Where to Use
Use Sante Fe Small Hang Kit inside any residential or commercial building's basement, crawl space, or attic.
When to Use
Sante Fe Small Hang Kit is best used when freeing floor space or prior to flooding.
Safety Information
Sante Fe Small Hang Kit is safe to use around children or pets when applied according to the product manufacturer guide. Always wear the appropriate personal protective equipment (PPE) when going into treatment sites such as gloves, mask, safety goggles, and closed-toe shoes with socks.
Screwing the eye bolts directly into the bottom flange on the TJI Joist will weaken the structural integrity of the joist.
Special Consideration
Sante Fe Small Hang Kit is an accessory add-on and does not include the actual dehumidifier itself.
*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure that packages are covered by their respective manufacturers warranties.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | SANTA FE |
Keith's Pro Tips | "During installation, simultaneously pull up on the rope attached to the unit and down on the ratchet rope for better results." |
Product Drawbacks | Santa Fe Small Hang Kit will only hold small dehumidifier models. |
Target Pests | Santa Fe Small Hang Kit does not eliminate pests, but will support other Sante Fe dehumidifier models while they work to eliminate moisture that pests such as cockroaches depend on and mold or fungi. |
Application Equipment | None Needed |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | Santa Fe Small Hang Kit will continue to be effective for as long as the product does not display wear and tear. |
Yield | Santa Fe Small Hang Kit will cover as much space as the size of the dehumidifier model used. |
Use Sites | Indoors |
Time to Kill | Santa Fe Small Hang Kit does eliminate pests, but will support other dehumidifier equipment. |
Comparable Products | Santa Fe Large Hang Kit |
Restricted Use | No |
---|---|
Availability | Online |
Keith's Pro Tip | "During installation, simultaneously pull up on the rope attached to the unit and down on the ratchet rope for better results." |
Time to Kill | Santa Fe Small Hang Kit does eliminate pests, but will support other dehumidifier equipment. |
Chemical Type | Equipment |
Formulation | Parts/Unit |
Application Methods | Installation |
Product Drawbacks | Santa Fe Small Hang Kit will only hold small dehumidifier models. |
Active Ingredient | N/A |
Application Equipment | None Needed |
Mix Rate | N/A |
Use Sites | Indoors |
Yield | Santa Fe Small Hang Kit will cover as much space as the size of the dehumidifier model used. |
Shelf Life | Santa Fe Small Hang Kit will continue to be effective for as long as the product does not display wear and tear. |
Comparable Products | Santa Fe Large Hang Kit |
Children or pets? | No |
Property Characteristics | None |
