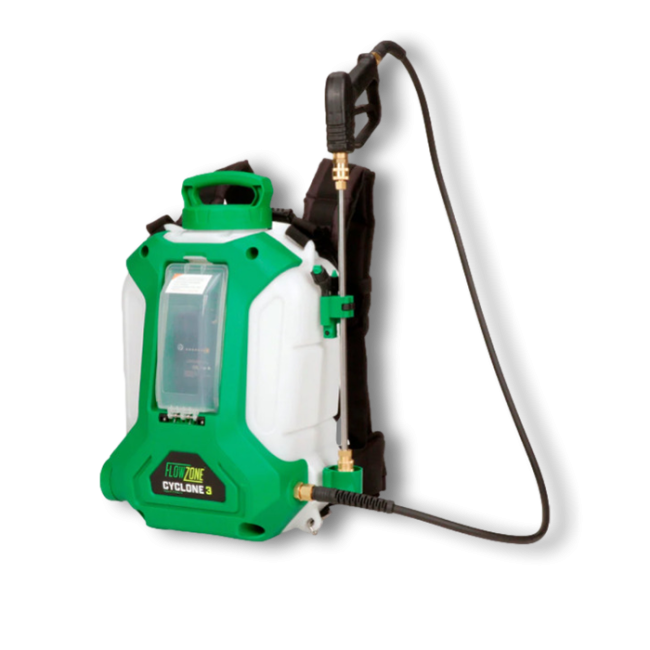

The Flowzone Cyclone 3 Backpack Sprayer (formerly Flowzone Cyclone 2.5V model version), manufactured by Flowzone, is a battery-powered sprayer with a 4-gallon capacity that comes with a detachable hose, updated qc nozzles, and wedge-lock wand holsters for premier pest and unwanted foliage control.

This sprayer is designed for water-soluble chemicals making it ideal for both pesticides and herbicides. The Flowzone Cyclone 3 Backpack Sprayer comes with an 18v Lithium-ion battery that allows for over 2 hours of continuous operation.

The Flowzone Cyclone 3 Back Sprayer offers variable speed switch with a maximum spray distance of 25 feet with up to 57 gallons of sprayer per battery charge. The different nozzle attachments give you the option of a fan, jet, and adjustable which ranges from jet stream to cone stream.

Tools Needed

To use the Flowzone Cyclone 3 Backpack Sprayer, we recommend wearing protective gear such as protective clothing, safety gloves, glasses for eye protection, and a respirator when spraying chemicals.

How To Use

• Step 1: Remove the nuts and bolts (6), holsters (4, 5) and nozzles (13, 14, 15) from the tank strainer (3). Set aside.
• Step 2: Bring the ComfortStraps (11) to the bottom of the tank. Secure the lower strap clips to the loops at the bottom of the tank.
• Step 3: Next, slide the adjustable strap through the top tank loop. Continue by sliding the strap under and over the buckle fitting. Lightly tug to make sure the strap is secure. Repeat on other side.
• Step 4: If the shoulder straps arrive detached, attach the bottom to the adjustable buckle using the same method as before.
• Step 5: Slide the top wand holster onto protruding holster mount on the sprayer tank. Insert a nut on one side of the hexagonal slot on the bottom of the holster and screw the bolt through the other side using a Phillip’s head screwdriver until the bolt fastens into the nut. Repeat for the bottom holster/slot.
• Step 6: Take the spray gun (10) and attach it to the threaded fitting on the end of the hose (12). Tighten the fitting to ensure the gasket properly seals the connection.
• Step 7: If spraying with the stainless steel spray wand (9), pull back on the collar of the quick-connect fitting on the spray gun and push the collar back into its original position.
• Step 8: Although the battery (7) may be partially charged upon delivery, it is essential to fully charge the battery prior to the first operation. An indicator light should flash while the battery is plugged in and charging. The charge level can be viewed by activating the indicator lights on the battery by pressing on the battery icon.
• Step 9: In a separate container, prepare the solution you want to spray according to the chemical manufacturer’s instructions. Remove the tank lid and carefully pour the solution through the tank strainer. Securely tighten the tank lid.
• Step 10: Determine the nozzle you would like to use and insert it into the spray gun or spray wand by pulling back on the quick-connect fitting. Once the nozzle is in place, push the collar back to its original position. General flow rates for each nozzle can be found on page 16.
• Step 11: Turn the pump on by rotating the variable pressure dial clockwise to the desired position. Reference flow rate and spraying pressure chart on Page 16.
• Step 12: To begin spraying, simply hold down the trigger on the spray gun. When operating in cold temperatures, put the battery pack in the battery compartment and use the sprayer in a light duty application. After about a minute the battery pack will warm up and begin operating normally.

Where to Use

The Flowzone Cyclone 3 Back Sprayer is designed for outdoor and indoor use of insecticides, herbicides, fungicides, surfactants, and pesticides.

When to Use

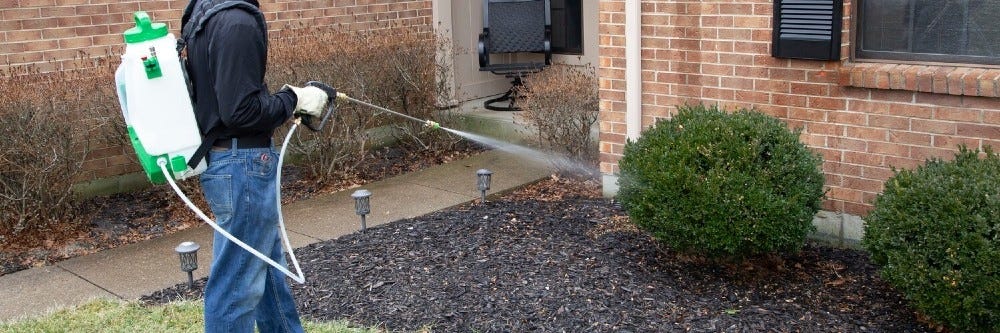

Use the Flowzone Cyclone 3 Backpack Sprayer when you need a more convenient method of spraying chemicals for pest control and lawn care in and around a building or lawn.

Safety Information

The Flowzone Cyclone 3 Backpack Sprayer is safe to use around children and pets when installed according to the product manual instructions. Always wear the proper personal protective equipment (PPE) when handling this product.

Never leave chemicals or solutions sitting in your sprayer after using.

Keep sprayer and all chemicals out of the reach of children.

Special Considerations

This sprayer is designed to operate with only Flowzone branded batteries and adapters. Any other batteries could cause serious harm or injury to the operator and serious damage to the sprayer.

*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure the packages are covered by their respected manufacturer's warranties.
