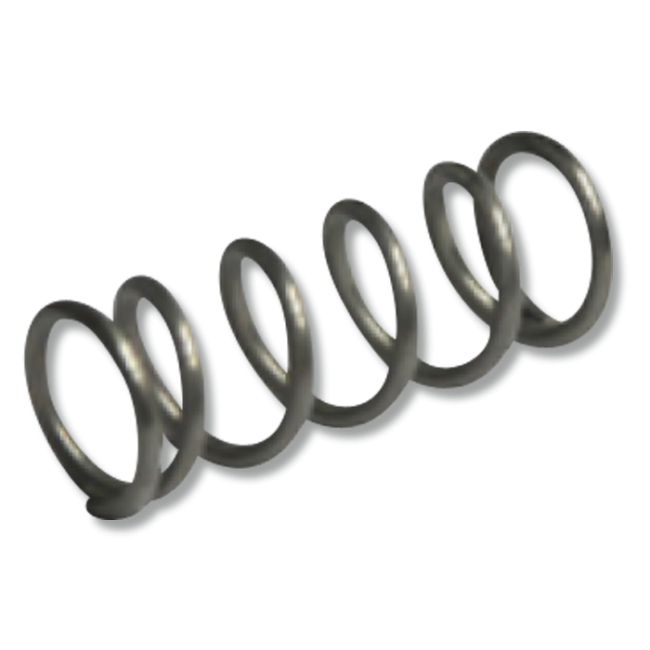

This B&G Seat Stem Spring VS-156 is manufactured by B&G Equipment Company and is specifically sold for use as a specialty tip part for B&G sprayers. The B&G Seat Stem Spring fits right inside the extension wand and is held in with the seat stem nut and the seat stem itself. If your extension wand is leaking from the tip or experiencing a constant drip, replacing the Seat Stem Spring can get your sprayer working like normal again.

Tools Needed

To use the B&G Seat Stem Spring, you will need a B&G Sprayer with an Extenda-Ban Valve extension wand and two adjustable crescent wrenches.

How to Use

• Step 1: Following the manufacturer instructions, detach the valve and extension from the hose. Carefully remove the mesh strainer and squeeze the trigger to drain all the liquid from the valve.

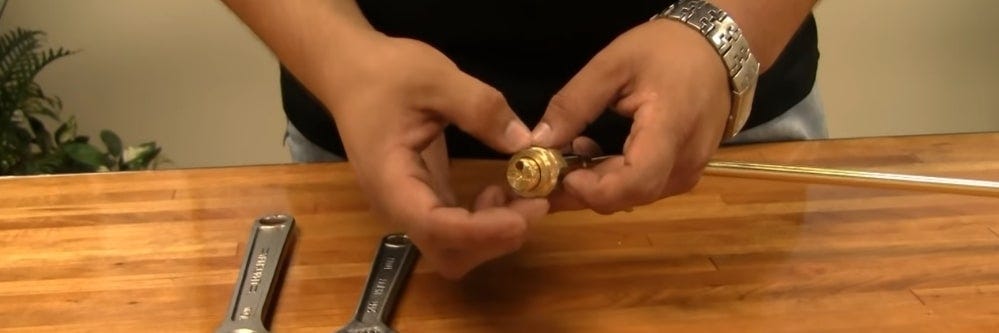

• Step 2: Remove the tip and nozzle assembly from the end of the extension. Push the cable out of the front of the extension to expose the spring, lock nut and seat steam. Unscrew the seat stem and lock nut and slide off the spring.
• Step 3: Remove the old Seat Stem Spring and replace with the new spring and then reassemble, making sure to tighten all parts for they are secure.

Where to Use

The B&G Seat Stem Spring is used primarily for B&G Sprayers with the extenda-ban valve. The B&G Seat Stem Spring fits right inside the extension wand and is held in with the seat stem nut and the seat stem itself.

When to Use

Use the B&G Seat Stem Spring to repair your B&G Sprayer when your extension wand is experiencing a leak or a constant drip.

Safety Information

The product is safe to use when applied according to the label directions. Keep out of reach of pets or small children.

Special Considerations

This part is specifically for the Extenda-Ban Valve model of B&G sprayers. It will not fit with the Ban-Drip valve or XR valve.
