B&G 4-Way C&C Tip Holder
B&G 4-Way C&C Tip Holder

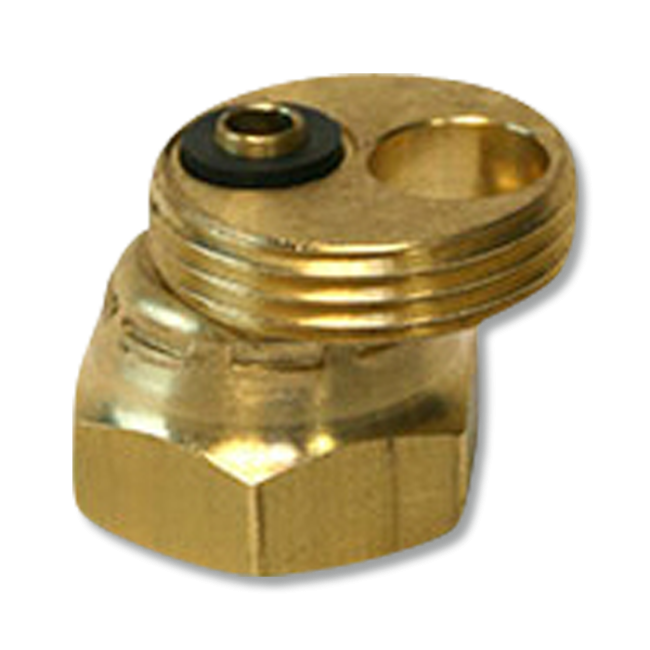

The 4-way C&C Tip Holder is made by B&G Equipment and it is used in the wands of the B&G Prime Line Sprayers. The 4-way C&C Tip Holder is located at the front of the wand right behind the tip.
There are two major problems that the 4-way C&C Tip Holder can cause when it is worn, damaged or dirty. The first problem is the tank holds pressure, but there is no spray from the nozzle. This normally happens with an older unit. The second problem is the extension wand is leaking at the tip with a constant drip. Replacing the tip can stop the leaking and get your sprayer performing like normal.
Tools Needed
To remove and replace the 4-way C&C Tip Holder you will need gloves and 2 wrenches to properly loosen the tip assembly.
How to Use
- Step 1: Before starting, you will need to decompress the tank and flush out any chemicals that could be left in the wand. To flush out the tank simply add clean water to the tank and triple rinse. Once the tank is clean you will need a clean working area preferably a table to dismantle the unit due to the many small parts.

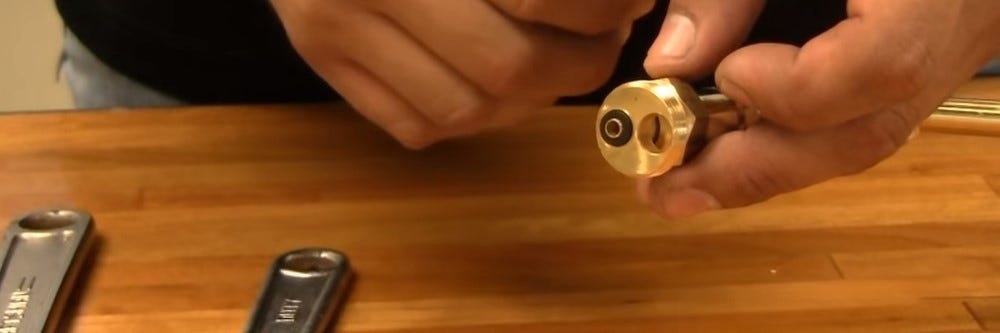

- Step 2: Use one wrench to hold the extension and the second wrench to loosen the tip assembly. Once the tip assembly is removed, the soft seat gasket will simply fall down. Inspect the 4-way C&C Tip Holder to determine if replacing or cleaning is needed.

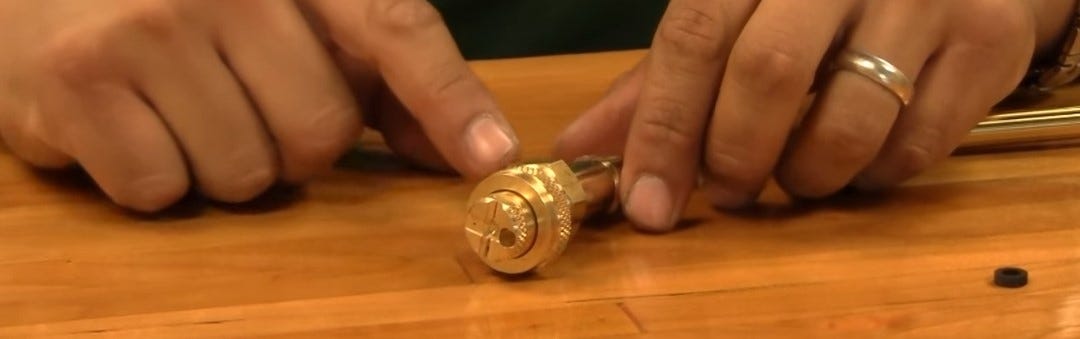

- Step 3: When placing the 4-way C&C Tip Holder back into the wand you will need to make sure it is facing the correct way. To make installation easy you will need to press the trigger to retract the Seat stem into the Extension, then attach the tip and nozzle. Then tighten the tip by using 2 wrenches; one to hold the extension and the second to tighten the tip assembly.
- Step 4: Add clean water to the tank and test the wand by simply spraying the unit.
Where to Use
The 4-way C&C Tip Holder is used in the B&G Sprayer wands with the Extenda-Ban Valve and it is located behind the tip.
When to Use
The 4-way C&C Tip Holder is replaced when it becomes damaged or worn.
Safety Information
The product is safe to use when applied according to manual directions. Make sure to always work with a clean B&G tank and never with a tank full of chemicals.
Special Considerations
When replacing the parts to the B&G units refer to the manual for troubleshooting guides and how to identify the issue.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | B&G |
Keith's Pro Tips | When repairing the B&G Prime Line Sprayers always make sure to triple rinse and properly dispose of any chemicals inside of the tank. Never try to fix the sprayer with chemicals inside of the tank. |
Product Drawbacks | Part may wear and tear over time and will need replacement and/or service. |
Target Pests | N/A |
Application Equipment | None Needed |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | With regular maintenance, the B&G Prime Line Sprayer will last you for many years. |
Yield | N/A |
Time to Kill | N/A |
Comparable Products | B&G C&C 4 Way Tip |
Restricted Use | No |
---|---|
Availability | Online |
Keith's Pro Tip | When repairing the B&G Prime Line Sprayers always make sure to triple rinse and properly dispose of any chemicals inside of the tank. Never try to fix the sprayer with chemicals inside of the tank. |
Time to Kill | N/A |
Chemical Type | Equipment |
Formulation | Parts/Unit |
Application Methods | Installation |
Product Drawbacks | Part may wear and tear over time and will need replacement and/or service. |
Active Ingredient | N/A |
Application Equipment | None Needed |
Mix Rate | N/A |
Yield | N/A |
Shelf Life | With regular maintenance, the B&G Prime Line Sprayer will last you for many years. |
Comparable Products | B&G C&C 4 Way Tip |
Children or pets? | No |
Property Characteristics | None |
