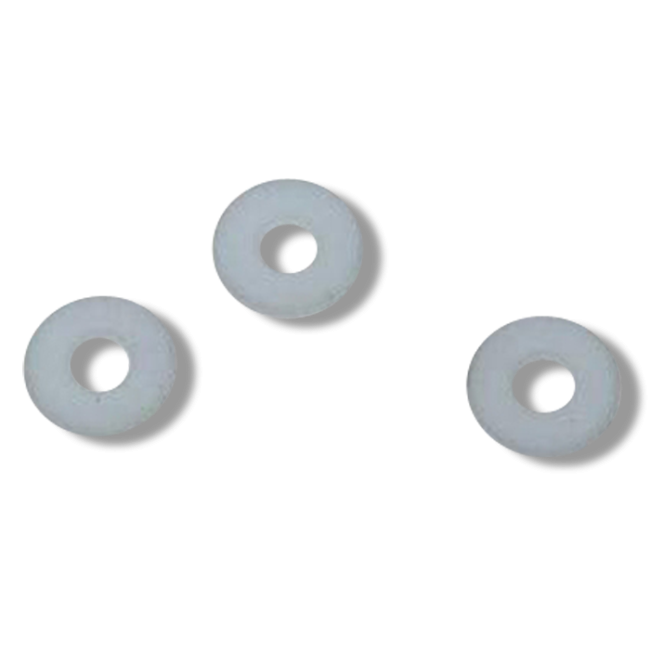

B&G TSG-51 Teflon Seat Gasket for Sprayer
B&G TSG-51 Teflon Seat Gasket for Sprayer
The B&G TSG-51 Teflon Seat Gasket is manufactured by B&G Equipment and is a replacement located on the Ban Drip Valve assembly of B&G Primeline Sprayers. The seat gasket is located between the valve rod and the tip cap of the valve.
When the seat gasket is worn, damaged or dirty it can effect the performance of the spray valve or cause a leak. Replacing the seat gasket can potentially stop the leaking and get your sprayer performing like normal.
Tools Needed
To remove and replace the seat gasket, you will need gloves and 2 wrenches to properly take apart the Ban-Drip Valve Assembly to get to the part.
How to Use
- Step 1: Before starting, you will need to decompress the tank and flush out any chemicals that could be left in the wand. To flush out the tank simply add clean water to the tank and triple rinse. Once the tank is clean you will need a clean working area preferably a table to dismantle the unit due to the many small parts.
- Step 2: Using a wrench, detach the Ban-Drip valve body from the hose then carefully unscrew the tip and tip cap at the front of the valve. Remove the seat gasket holder to expose the seat gasket.
- Step 3: Remove the old seat gasket and replace with the new Teflon Seat Gasket. You can then reassemble the Ban drip valve, going backward until it is put back together.
- Step 4: Add clean water to the tank and test valve by spraying the unit, ensuring there are no leaks or performance issues.
Where to Use
The B&G TSG-51 Teflon Seat Gasket is used in B&G Sprayer wands with the Ban-Drip Valve and it is located on the valve rod and pin after after removing the tip and tip cap assembly.
When to Use
The B&G TSG-51 Teflon Seat Gasket should be replaced when it becomes damaged or worn.
Safety Information
TheB&G TSG-51 Teflon Seat Gasket is safe to install when done so according to Professional Sprayer's User Manual. Make sure to always work with a clean B&G tank and never with a tank full of chemicals.
Special Considerations
This is a small part and to get it you have to first unscrew other small parts. Keep the parts in a closed container so you don't misplace them. Make sure you keep track When replacing the parts to the B&G units refer to the manual for troubleshooting guides and how to identify the issue.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | B&G |
Keith's Pro Tips | "When replacing the Teflon Seat Gasket, examine the other parts on the Ban Drip Valve to see if they need replacing as well. It's a good practice to have parts on hand and do a replacement of several of the crucial Ban-Drip Valve parts at once as part of routine maintenance." |
Product Drawbacks | Part may wear and tear over time and will need replacement and/or service. |
Application Equipment | Pump Sprayer |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | N/A |
Yield | N/A |
Use Sites | Indoors, Outdoors |
Time to Kill | N/A |
Comparable Products | B&G Strainer Kit - Part MS 145-50 |
Restricted Use | No |
---|---|
Availability | Online |
Keith's Pro Tip | "When replacing the Teflon Seat Gasket, examine the other parts on the Ban Drip Valve to see if they need replacing as well. It's a good practice to have parts on hand and do a replacement of several of the crucial Ban-Drip Valve parts at once as part of routine maintenance." |
Time to Kill | N/A |
Chemical Type | Equipment |
Formulation | Parts/Unit |
Application Methods | Installation |
Product Drawbacks | Part may wear and tear over time and will need replacement and/or service. |
Active Ingredient | N/A |
Application Equipment | Pump Sprayer |
Mix Rate | N/A |
Use Sites | Indoors, Outdoors |
Yield | N/A |
Shelf Life | N/A |
Comparable Products | B&G Strainer Kit - Part MS 145-50 |
Children or pets? | No |
Property Characteristics | None |
