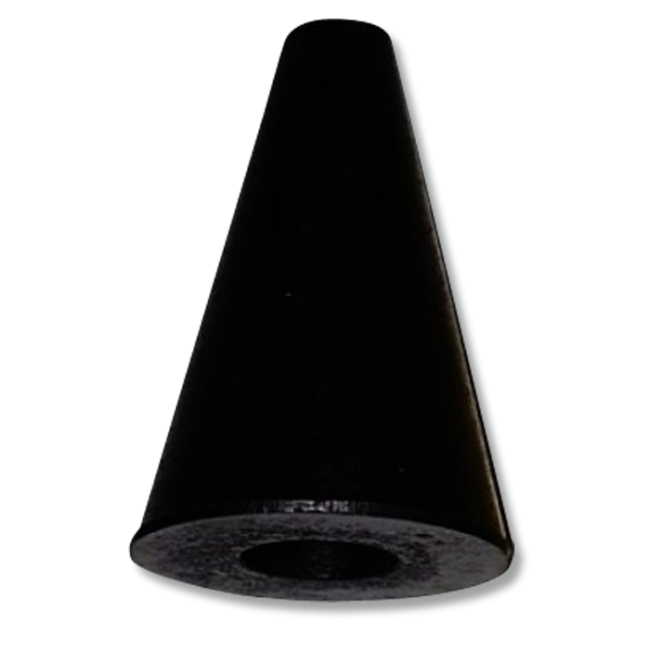

The VT-627 Slab Treater Seal is made by B&G Equipment and it is used in the Slab Injector Pedal Assembly of the B&G Robco Termite Tool. VT-627 Slab Treater Seal is located below the pedal weldment. When treating below a concrete slab, the cone seal helps to seal the drill hole and allows the tip of the pipe to extend into the void between the concrete slab and soil.

Tools Needed

To remove and replace the VT-627 Slab Treater Seal you will need gloves and an adjustable wrench.

How to Use

• Step 1: Before starting, it is important to flush out any chemicals that could be left in the unit. To flush out the unit, simply add clean water and triple rinse. Once the unit is clean, you will need a clean working area preferably a table to dismantle the unit due to the many small parts.
• Step 2: Use the adjustable wrench to remove the cone seal retainer nut holding the seal in place. Once this is removed, the seal can simply slide out and the new seal can be installed.
• Step 3: Reassemble the Robco Termite Tool, and then test out the part by adding water to the unit and spraying to ensure there are no leaks.

Where to Use

The VT-627 Slab Treater Seal is used in the B&G Robco Termite Tool and it is located below the pedal weldment.

When to Use

The VT-627 Slab Treater Seal will need to be replaced when it becomes damaged or worn.

Safety Information

Be sure to wear gloves when handling parts, as there may be residue from chemicals or buildup on the parts. Be sure to properly drain and clean the parts of the tool before performing maintenance. Keep the parts out of reach of pets and children.

Special Considerations

When replacing the parts to the B&G units refer to the manual for troubleshooting guides and how to identify the issue.
