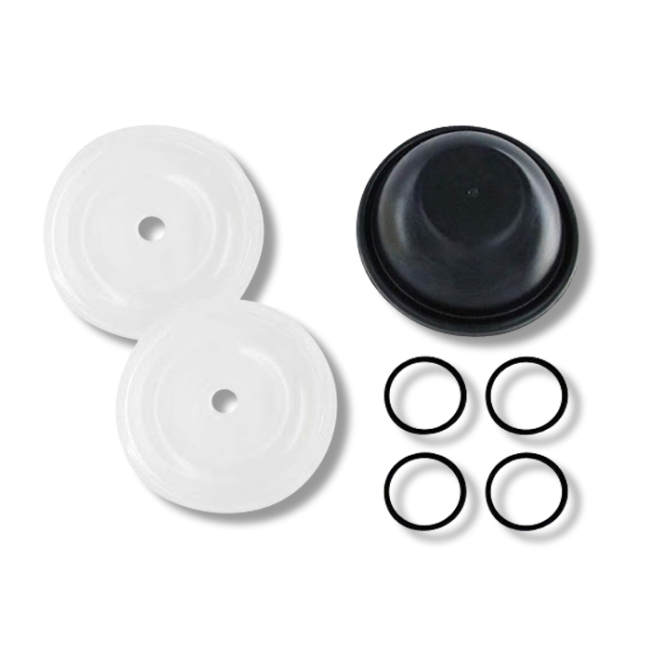

UDOR Kappa 25 Repair Kit by Udor USA is designed to replace or repair the Udor Kappa 25 diaphragm pump so it can be restored back to optimum performance. This kit comes with the following: 1 x 0903.08 Accumulator Diaphragm, 2 x 0903.50 Desmopan Diaphragms, 4 x 1101.27 Valve O-rings. If the performance quality of your Udor Kappa 25 Diaphragm Pump has reduced, this kit may help it return back to normal.

Tools Needed

There will be tools necessary to install the UDOR Kappa 25 Repair Kit onto the Udor 25 Diaphragm Pump.

How to Use

• Step 1: Start by draining the crankcase oil from the Diaphragm Pump by removing the oil drain plug located at the bottom of the pump.
• Step 2: Following the instruction manual, remove the old diaphragms from the Kappa 25 Diaphragm Pump. Turn the crankshaft to bring the piston up to the top of its stroke, then remove the diaphragm bolt and washer, then remove the diagram.
• Step 3: Replace with the new diaphragms by installing the diaphragm bolt and washer into the new diaphragm. Install this assembly to the piston, flat side of the diaphragm down. Use blue threadlocker or equivalent on the diaphragm bolt, then torque to the recommended specs.
• Step 4: Rotate the crankshaft to bring the piston and diaphragm to the bottom of its stroke, then seat the outside edge of the diaphragm into the pump body. You can then reassemble the Kappa 25 Pump and test it out to see if it works properly.

Where to Use

The UDOR Kappa 25 Repair Kit is made specifically for the Udor Kappa 25 or Kappa 25/GR Diaphragm Pump.

When to Use

Use the UDOR Kappa 25 Repair Kit when you are experiencing low pressure or bad pressure when pumping or spraying on your professional spray rig unit.

Safety Information

This kit is safe to use and install when following the manual directions. Check the safety information that comes with the Kappa 25 Pump for proper safety procedures when installing the product. Keep parts out of reach of pets and children.

Special Considerations

After the Kit is installed, carry out a regular maintenance procedure to ensure the longevity of your Diaphragm pump and sprayer. Detailed procedures are located in the pump manual.
