GEN 1.3 AND GEN 3 - REPLACEMENT PETER PAUL 3-WAY VALVE

Free Shipping on All Orders

Target Pests

Mosquitoes

For Use In

Mistaway Mosquito Misting Systems

Application

Yearly Recommended Maintenance

1. Flush pump (and agitation valve if equipped) and nozzle circuit with clean water:

a. Fill 5 gallon bucket with fresh water and position next to unit.

b. Lift drum lid (with mounted assembly) from drum and rotate/reposition so that pump intake line (and agitation j-tube, if equipped) is submerged inside 5 gallon bucket.

c. Activate an extended manual mist. The agitation cycle will flush the agitation valve (if there is one) and the mist cycle will flush the pump and nozzle circuit. If zone kit, run mists on both zones to flush both nozzle circuits.

d. *Remove intake line (and agitation j-tube if equipped) from bucket, disconnect nozzle circuit line, and activate a dry (i.e., suction line not in any fluid) manual mist to clear water from valve and pump.

e. *While unit is running dry, lift left side of unit to clear water from agitation valve and leak detection assembly (if installed).

f. Reposition drum lid and assembly back on drum. 2. *Unplug unit and wrap power cord around assembly. 3. Replace waterproof cover. 4. *Purge fluid remaining in nozzle circuit with compressed air. a. Remove the tip from the last nozzle on the end of each run. b. Use portable air compressor with adapter (MistAway Part # 20052) to purge fluid from nozzle circuit

GEN 1.3 AND GEN 3 - REPLACEMENT PETER PAUL 3-WAY VALVE

$200.00
$200.00

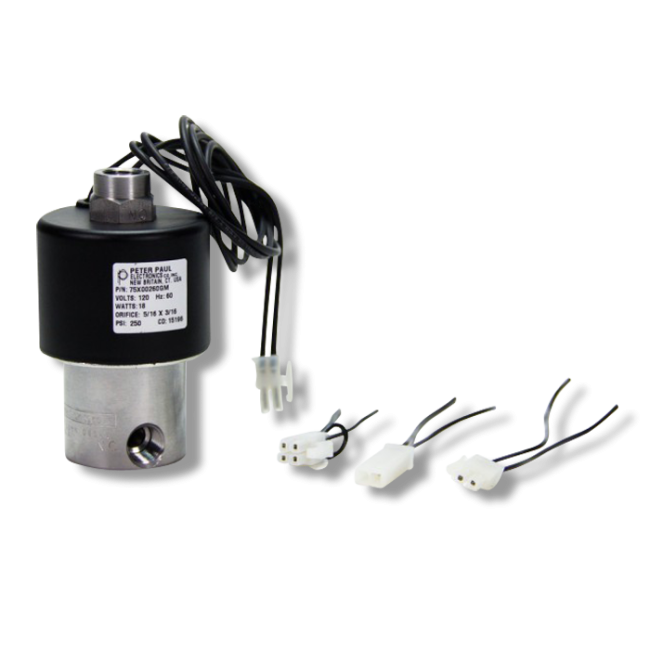

MistAway Gen 1.3 and Gen 3 - Replacement Peter Paul 3-Way Valve
To replace valves in Gen 1.3/3/1.2/2 and all zone kits.
Valve only, no fittings.
To ensure valve with proper connector, specify unit type type in Notes when ordering.

MistAway Gen 1.3 and Gen 3 - Replacement Peter Paul 3-Way Valve
To replace valves in Gen 1.3/3/1.2/2 and all zone kits.
Valve only, no fittings.
To ensure valve with proper connector, specify unit type type in Notes when ordering.
