D-30 Pump Diaphragm Repair Kit
D-30 Pump Diaphragm Repair Kit

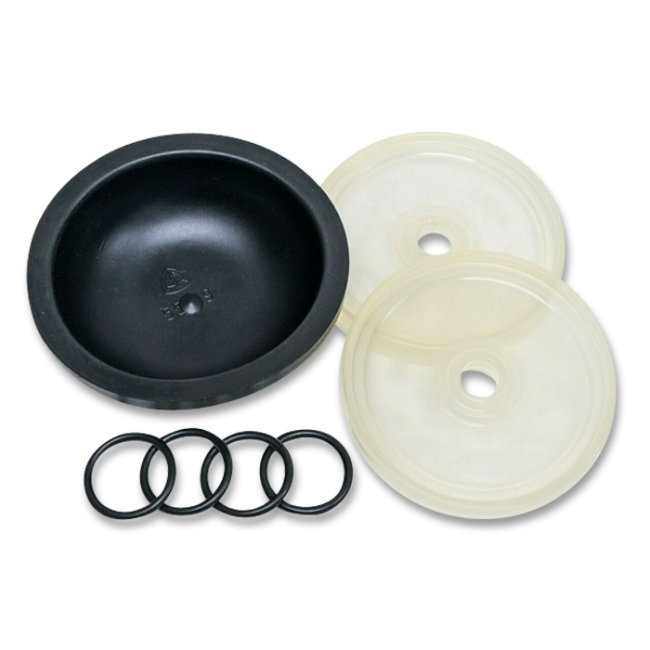

The D-30 Diaphragm Pump Repair Kit is manufactured by Hypro and is a set of replacement parts for the D-30 Hypro Diaphragm Pump, which is an important part of our professional spraying rigs. The Hypro D-30 Repair Kit is ideal for routine maintenance of your Diaphragm Pump to replace worn or damaged parts. If your diaphragm pump is causing the oil to turn a milky gray color, replacing the Diaphragm Pump is important to fix the problem. The Hypro D-30 repair kit includes the following:
- 2 desmopan diaphragm pistons
- 1 accumulator diaphragms
- 4 o-rings for the pump heads
Tools Needed
To install the D-30 Diaphragm Pump Repair Kit you will need an adjustable wrench for loosening/tightening parts and the D-30 Hypro Diaphragm Pump to mount it on.
How to Use
- Step 1: Make sure the D-30 Diaphragm pump is drained of all oil by removing the oil fill cap and turning the pump upside down as well as rotating the shaft until the oil is fully emptied out from the pump.
- Step 2: Remove pump head bolts and heads from the Diaphragm pump and then remove the Diaphragm retaining nut, support washer and diaphragm.
- Step 3: Turn the Crankshaft to bring the piston to its downstroke and seat the diaphragm into the sleeve groove. Install the new diaphragm, then replace the retaining washer and retaining nut. Here you should also replace the valve assemblies and O-rings.
- Step 4: Reinstall the pump heads and head bolts then reassemble and refill the crankcase with oil. Rotate the shaft to distribute the oil and fill it to the proper level.
Where to Use
The D-30 Diaphragm Repair Kit is made specifically for the Hypro D-30 Diaphragm Pump.
When to Use
Use the D-30 Diaphragm Repair Kit when the diaphragms, o-rings, and valves on your existing Hypro D-30 need to be replaced due to the pump not pressurizing like normal or the oil in your diaphragm pump are producing a milky gray hue because of being mixed with chemicals.
Safety Information
The D-30 Diaphragm Repair Kit is safe to use and easy to install when following the manual instructions.
Special Considerations
*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure the packages are covered by their respected manufacturer's warranties.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | HYPRO |
Keith's Pro Tips | "It is recommended to change the Diaphragms on a Diaphragm pump every 3 months or ever 500 hours of use." |
Product Drawbacks | Parts may wear and tear over time and will need replacement and/or service. |
Target Pests | N/A |
Application Equipment | Spray Rig |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | N/A |
Yield | N/A |
Use Sites | Outdoors |
Time to Kill | N/A |
Comparable Products | D-252 Diaphragm Pump Repair Kit |
