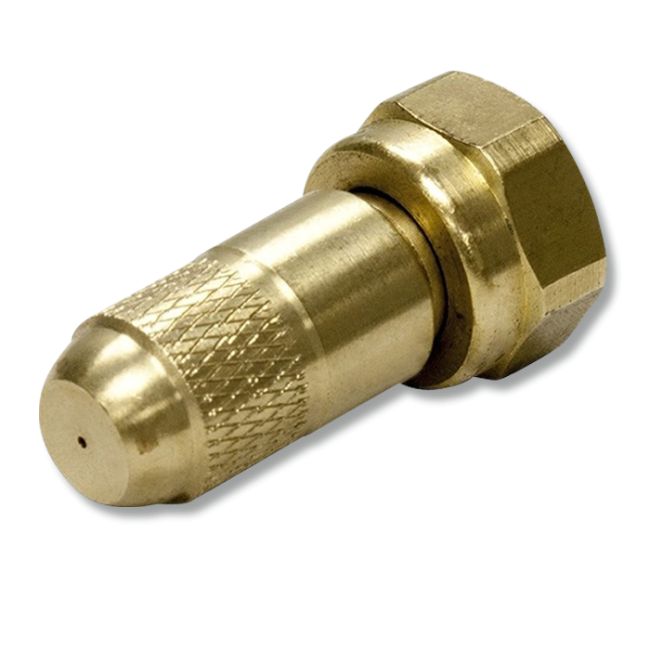

B&G Brass Pin-Cone Nozzle (AV-210)

B&G Brass Pin-Cone Nozzle (AV-210) is manufactured by B&G Equipment company and is specifically sold for use as an attachment tip for Extenda-Ban Value assembly for the stainless steel B&G sprayers. The B&G Brass Pin-Cone Nozzle (AV-210) allows the sprayer to spray in a pin cone stream.

Tools Needed

To use this part, you will need the appropriate B&G Sprayer to replace the part on and possibly a pair of pliers or a crescent wrench if the parts are tightly secured.

How to Use

• Step 1: Take the sprayer tip assembly apart on the extenda-ban valve wand. You can refer to the repair manual instructions for details on how to specifically do this.
• Step 2:After taking apart the assembly, remove the old tip assembly piece and replace with the newB&G Brass Pin-Cone Nozzle.
• Step 3: Put your B&G Sprayer back together and test it out to ensure it is working properly and changing to the different spray settings seamlessly.

Where to Use

The B&G Brass Pin-Cone Nozzle is meant to be used only for replacement on a B&G Sprayers with Extenda Ban Valves.

When to Use

Replace the B&G Brass Pin-Cone Nozzle on your sprayer when it has been damaged or you are experiencing problems when changing to the different spray settings. How often this part is changed depends on how often you use the sprayer. If it is heavily used, the part wears and tears more quickly. Part should be regularly checked and replaced annually depending on usage rate.

Safety Information

Be sure to wear gloves when handling the B&G sprayer parts, as there may be residue from chemicals or buildup on the sprayer parts. Be sure to properly drain and clean the sprayer parts before performing maintenance. Keep small items like this tip assembly out of reach of pets and children as they may swallow it.

Special Considerations

Along with the B&G Brass Pin-Cone Nozzle, it would be wise to replace all the other small parts on the B&G Sprayer rather than just a single one at one time. Set a maintenance schedule for your sprayer and change out all the parts in one shot to save time so your sprayer return back to normal performance.

This is a Y-2 tip. It has a Y pattern, it sprays 2/10th of a gallon per minute.
