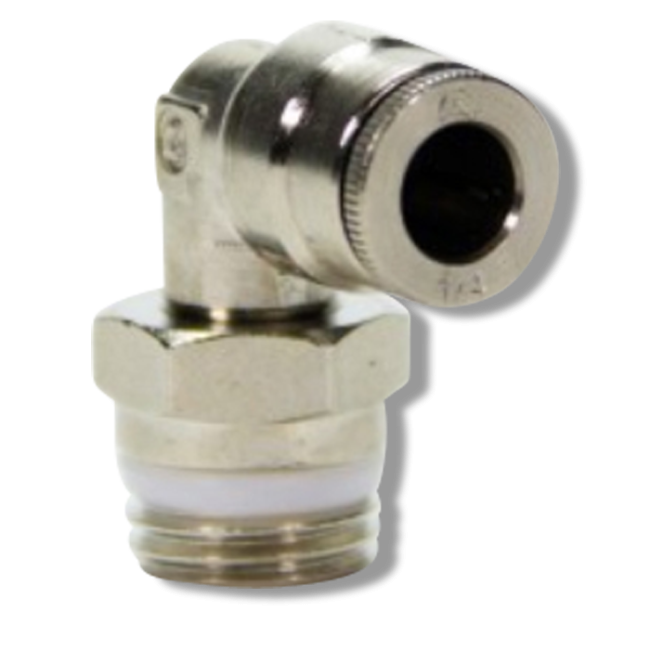

The Male Swivel Elbow (1/4" x 1/4") is manufactured by Mistaway and is designed to connect to multiple pieces hago nozzles to spray mosquito control products around various outdoor areas. This part can swivel so you can position your nozzles exactly how you want it. For a high quality mosquito misting system, use Male Swivel Elbows to replace worn nozzles to keep the system working at a high level.

Tools Needed

For best results when installing Male Swivel Elbow (1/4" x 1/4"), you will need a tubing cutter, screw gun, clamps, and screws (the type of screw needed depends on where the tubing line is run).

How to Use

• Step 1: Measure the length of tubing needed and locate the area the Male Swivel Elbow (1/4" x 1/4") will be placed. It is suggested to place a swivel elbow when you want to cut a sharp corner or end a run.
• Step 2: Use the tubing cutter to cut the tubing in the exact area where the swivel will be fitted.
• Step 3: Put a clamp around the tubing close to the nozzle and swivel elbow and screw it to the surface area to secure the nozzle in place.
• Step 4: Make sure there are no leaks between connecting the swivel elbow to the tubing and adjust the hago nozzle to spray in the desired direction.

Where to Use

Male Swivel Elbow (1/4" x 1/4")can be fitted anywhere along the tubing line at the end of the line or when your run needs to cut a sharp corner.

When to Use

The Male Swivel Elbow (1/4" x 1/4") is great to use when outdoor areas have multiple angles that need mosquito control and you need to get good coverage.

Safety Information

Male Swivel Elbow (1/4" x 1/4") are safe to use around humans and pets. Be sure to adjust the nozzles so that mosquito control products are not being sprayed directly people or pets.

Special Considerations

Before installing Male Swivel Elbow (1/4" x 1/4"), measure out the length of tubing needed first, then find the locations where the nozzles will be most useful.
