Hannay Reel Hose Guide HG-15K
Hannay Reel Hose Guide HG-15K

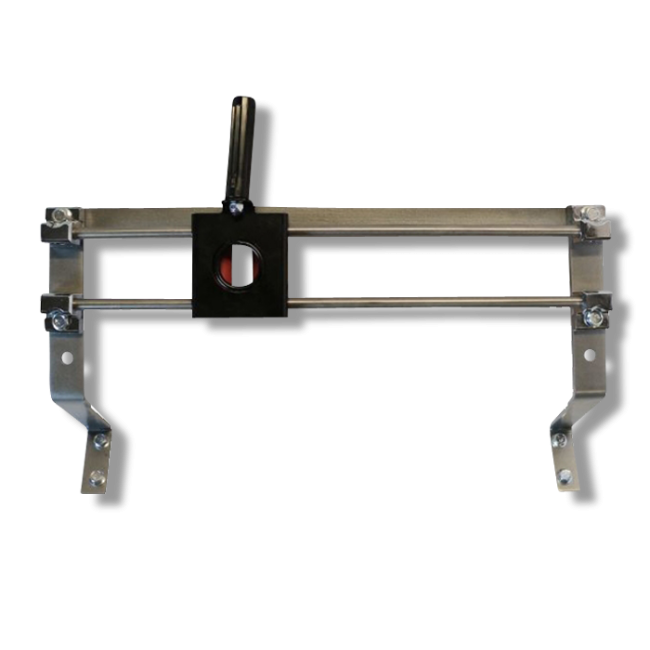

The Hannay Reel Roller Guide, manufactured by Hannay Reels, is a roller guide assembly designed for both Manual and Electric Hannay Hose reels from the 1520 series.
The roller guide is an essential component of the hose reel system as it helps keep the hose in front of the reel, making it easy to pull the hose out smoothly during jobs without damaging or twisting the hose or damaging the vehicle.
The Hannay Reel Roller Guide is made from durable steel and comes with mounting brackets and mounting hardware for easy installation.
Tools Needed
To install the Hannay Reel Roller Guide you will need a 3/8" socket wrench to mount it onto your Hannay 1520 Series Hose reel.
How to Use

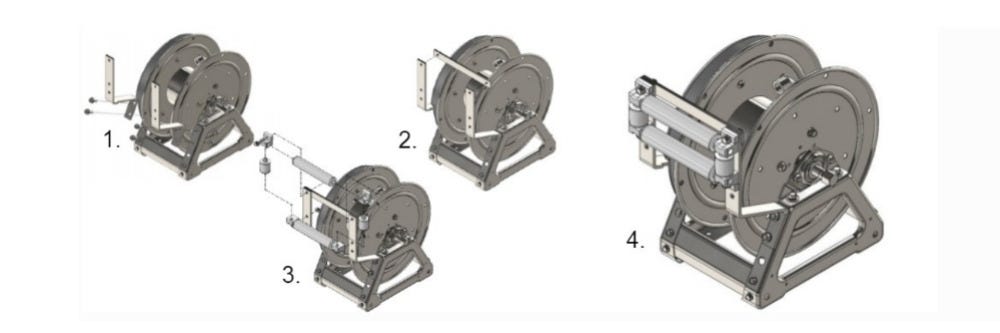

- Step 1: Start by installing the Left and Right vertical steel brackets onto the Hose Reel Frame using four 3/8" bolts and nuts.
- Step 2: Install the horizontal cross-member piece between the two brackets using two of the provided mounting blocks and two 3/8" bolts and nuts. Make sure to align the cross-member properly.
- Step 3: Install the top and bottom horizontal rollers using the mounting blocks and remaining nuts and bolts and then tighten the fasteners.
- Step 4: After the roller guide is correctly attached and aligned, you are ready to install the hose to the reel.
Where to Use
The Hannay Reel Roller Guide is made specifically for the Hannay Reels 1520 Series Hose Heels (both Manual and Electric Rewind) as part of a a professional pesticide skid sprayer set up.
When to Use
The Hannay roller guide comes in handy when you are rolling out hose and want a clean straight pull-out to prevent damage to the hose, twisting or potential hose rub damage to your vehicle during a large volume spraying application.
Safety Information
The Hannay Reel Rolley Guide is safe and easy to install when following the instructions carefully. Make sure to wear the proper PPE when conducting spraying applications.
Special Considerations
The Hannay Reel Roller Guide comes with the Roller Guides, Mounting Brackets, the Cross-Member that goes across the top of the roller guide for stability, and Mounting Hardware. Hose reel is not included.
*We do not accept returns on equipment or electronics, all sales are final. We do this to ensure that the products we send out are brand new, never opened, and fully operational for our customers to ensure the packages are covered by their respected manufacturer's warranties.
Availability | Online |
Restricted Use | No |
Shipping Restrictions | |
Brand | HANNAY |
Keith's Pro Tips | "When installing the Hannay Reel Roller Guide, the notches in the vertical brackets need to be facing inside of the reel. If it's not positioned this way, the motor chain guard will interfere with one of the vertical brackets." |
Product Drawbacks | The Roller Guide parts may wear and tear overtime especially from overuse and will need to be replaced. |
Application Equipment | Spray Rig |
Application Methods | Installation |
Active Ingredient | N/A |
Product Type | Equipment |
Formulation | Parts/Unit |
Application Rate | N/A |
Shelf Life | N/A |
Yield | N/A |
Use Sites | Outdoors |
Comparable Products | Hannay Reels Series 1500 Manual Rewind 1520 |
Restricted Use | No |
---|---|
Availability | Online |
Keith's Pro Tip | "When installing the Hannay Reel Roller Guide, the notches in the vertical brackets need to be facing inside of the reel. If it's not positioned this way, the motor chain guard will interfere with one of the vertical brackets." |
