The Hannay Reel Bearing is manufactured by Hannay Reels and is a special self-aligning bearing designed to help stablize the Hannay 1500 series reel when a hose in installed. Over time, this part can be damaged and will need to be replaced to ensure the Hannay hose reel works properly.

Tools Needed

To install the Hannay Reel Bearing you will need a set of tools like a socket wrench to loosen and tighten the part and two flathead screwdrivers..

How to Use

• Step 1: Use your tools to disassemble the Hanny Reel mounting hardware so you can access the old bearing. While holding the bearing down, pry off the bearing strap using the two flathead screwdrivers.
• Step 2: Remove the bearing insert top half from the hub then replace with the new Hannay Reel Bearing. Tighten to secure.
• Step 3: Grease the new bearing and then replace the bearing strap and reassemble the mounting hardware. Check for alignment and clearences before operating the reel.

Where to Use

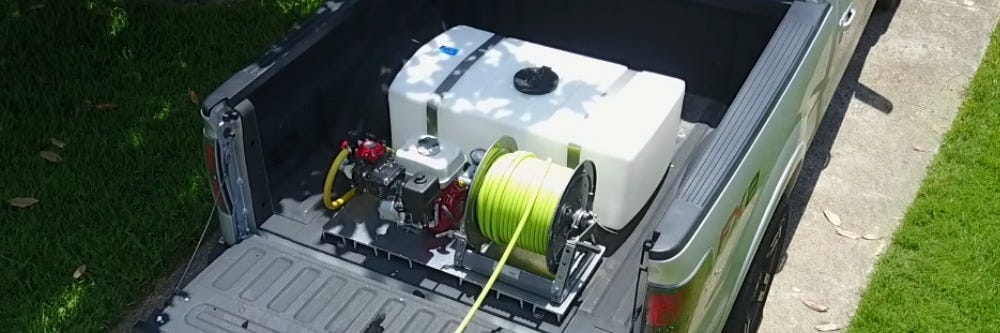

The Hannay Reel Bearing is made specifically for the Hannay 1500 series manual or electric reels that are part of a professional pesticide skid sprayer set up.

When to Use

The Hannay Reel Bearing for 1500 Series should be installed when the hold bearing is faulty or damaged.

Safety Information

The Hannay Reel Bearing for 1500 Series is safe and easy to install when done so following the manual instructions.

Special Considerations

Make sure before your order that you know this bearing is the right one to use for your Hannay Reel model. This one is specifically for the 1500 series and will not fit other models.
