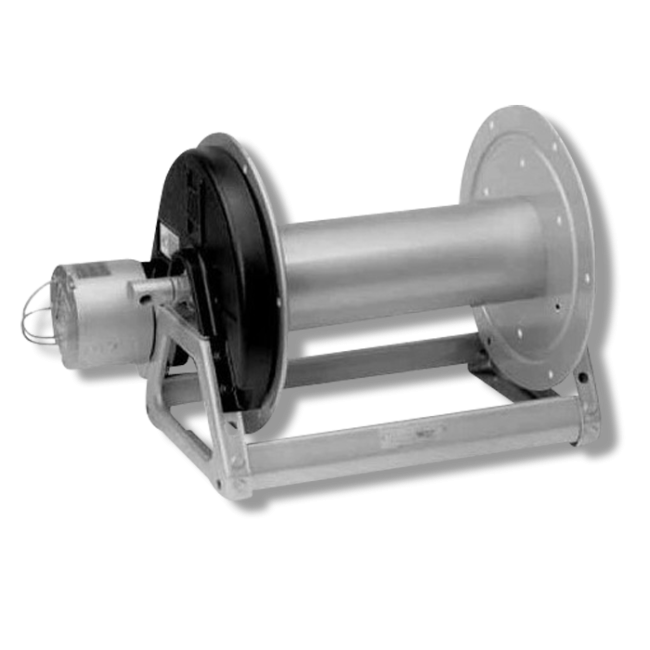

The Hannay Electric Rewind Reel (E1520-17-18 LT), manufactured by Hannay, is a effective electric rewind reel that has a 12V Motor that makes winding the hose fast and easy. It is lightweight and has a compact design for long lengths of hose. The chain sprocket drive is powered by the 12V motor.

The standard inlet is a 90-degree swivel joint with a 1/2" female NPT thread. This is a professional reel that will last you a long time as long as you keep it oiled and maintained.

Hannay Electric Rewind Reel E1520-17-18 LT will endure standard pressures up to 3,000 PSI and temperatures of +20 degrees up to 400 degrees Fahrenheit.

Tools Needed

For installation, you will need pliers, ratchet or open-ended wrench, Phillips screwdriver, Teflon tape, electrical tape, & cable connectors.

How to Use

• Step 1: Mount the Hannay electric reel onto your spraying rig and make sure it is tightly secured. You will also need to wire the electric motor according to the product manual.
• Step 2: Wrap your hose and spray gun around the Hannay electric reel, making sure to follow the instruction manual for details on how to properly set it up.
• Step 3: Flip the switch or use a push-button switch to make the reel begin unwinding or winding up the hose. Release the button to stop the winding when you desire.

Where to Use

Use the Hannay Electric Reel as part of a professional pesticide skid sprayer set up. The reel comes in handy when assigned large volume spraying applications on various sites that need treatment.

The Hannay Electric Hose Reel should be used when you are setting up a new spraying rig or need to replace the hose reel on an older spraying rig. The Electric hose reel is convenient because it saves you the strain of having to manually use a hand crank to wind up heavy hose.

Safety Information

Hannay Electric Rewind Reel is safe to use around children and pets when installed according to the product manual instructions. Always wear the proper personal protective equipment (PPE) when handling and installing this product.

Keep out of reach of children and pets.

Special Considerations

The Hannay Electric Hose Reel only contains the reel and the motor. You will need to purchase a switch (along with a circuit breaker and solenoid) in order to conveniently wind and unwind the hose when you need to.

This product has a LT (left, top, rewind) meaning it will have the inlet, outlet riser, and rewind mechanism on the operators left. Hose unwinds from the top of the reel.
